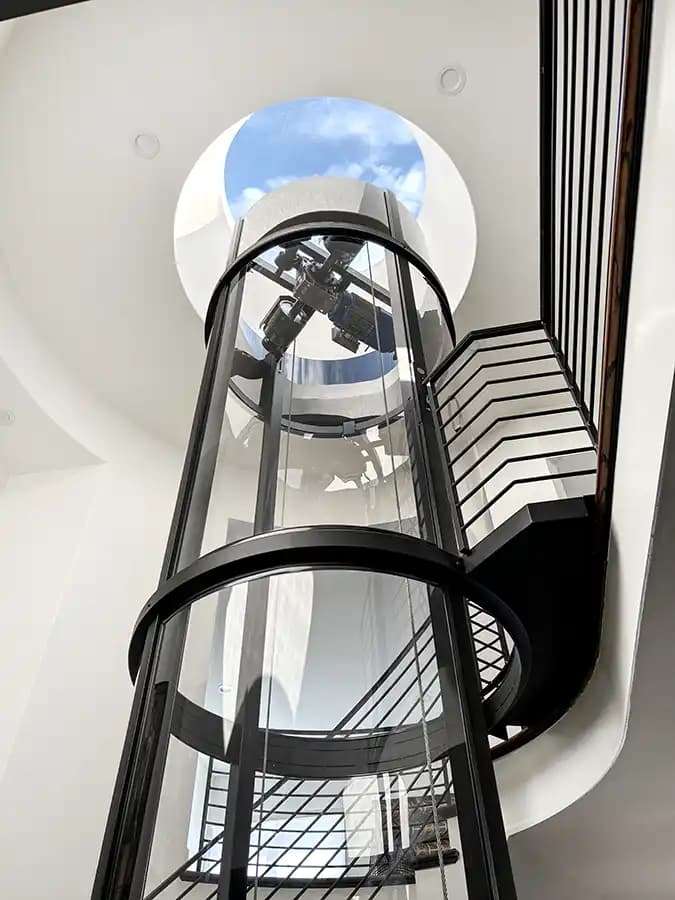

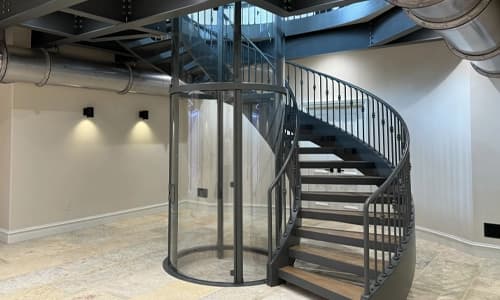

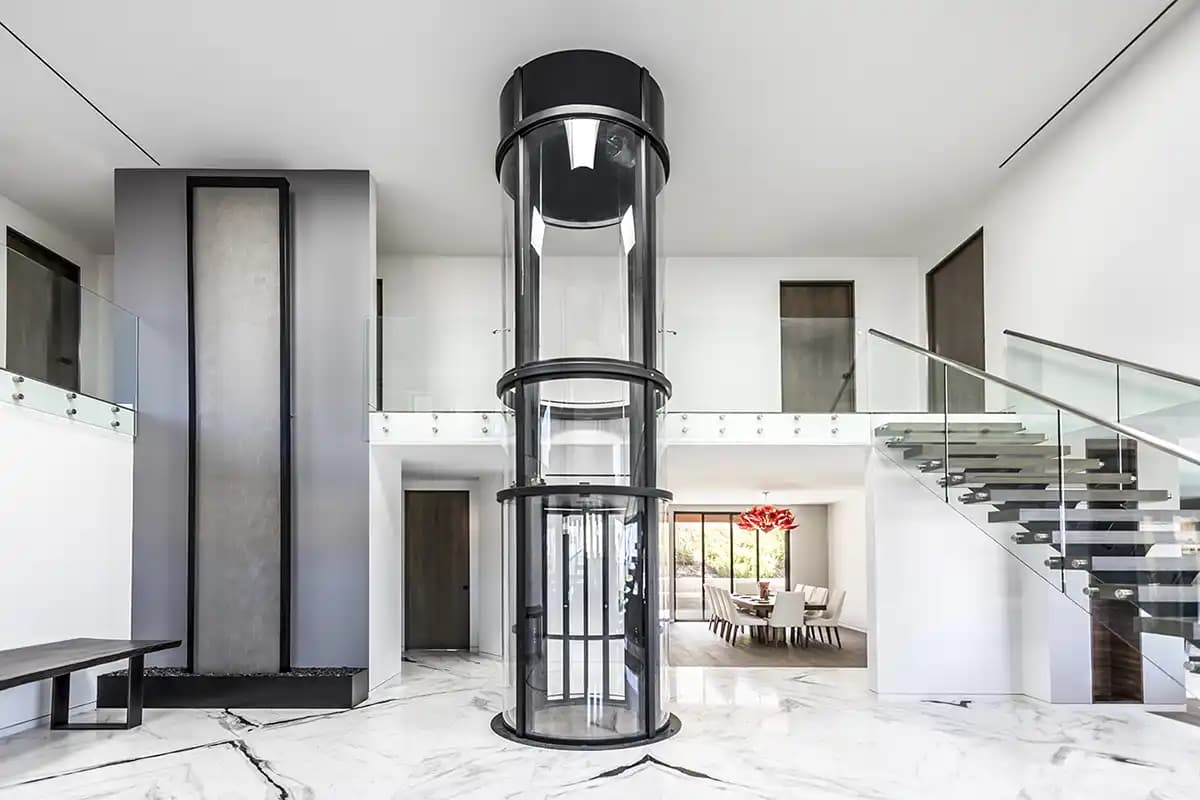

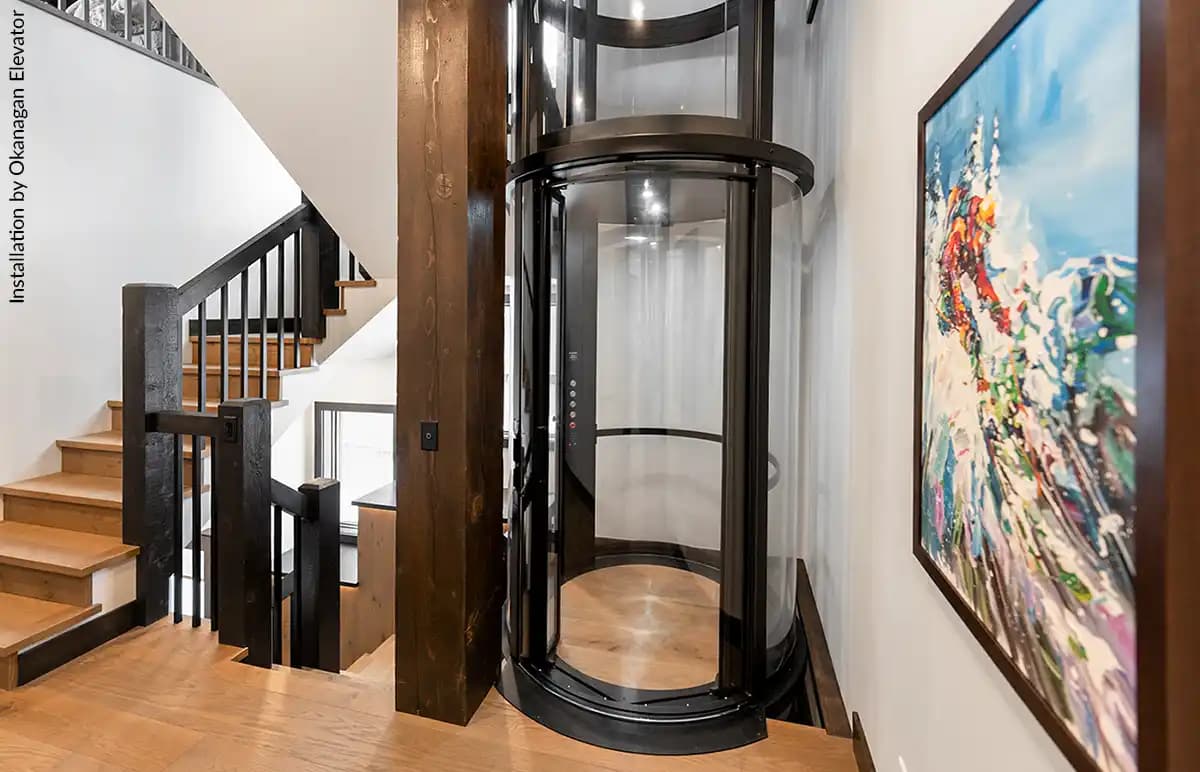

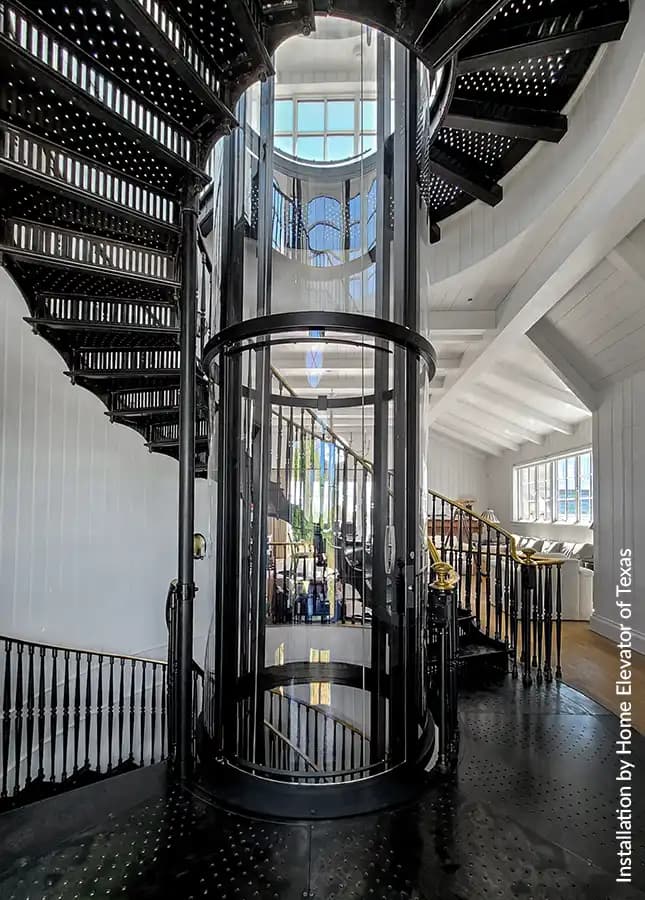

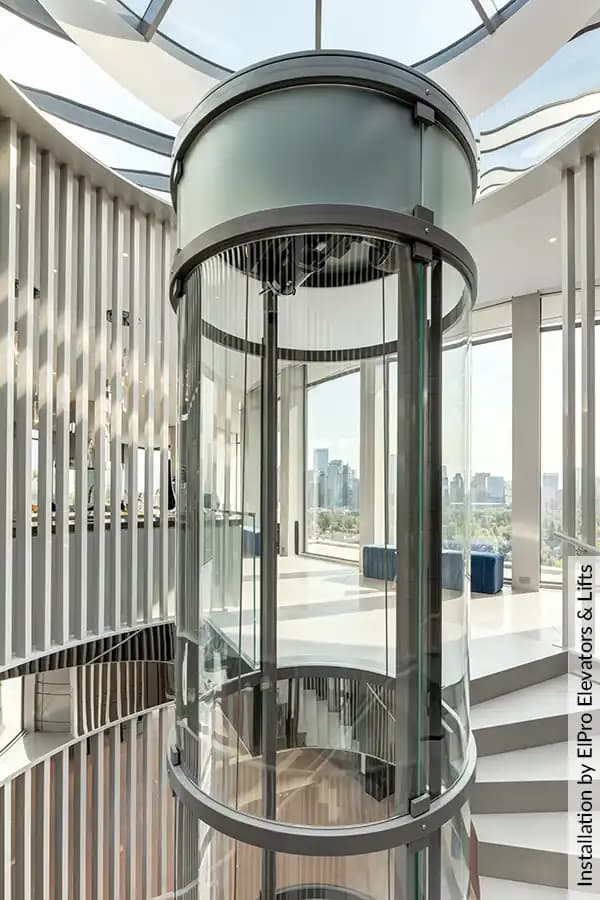

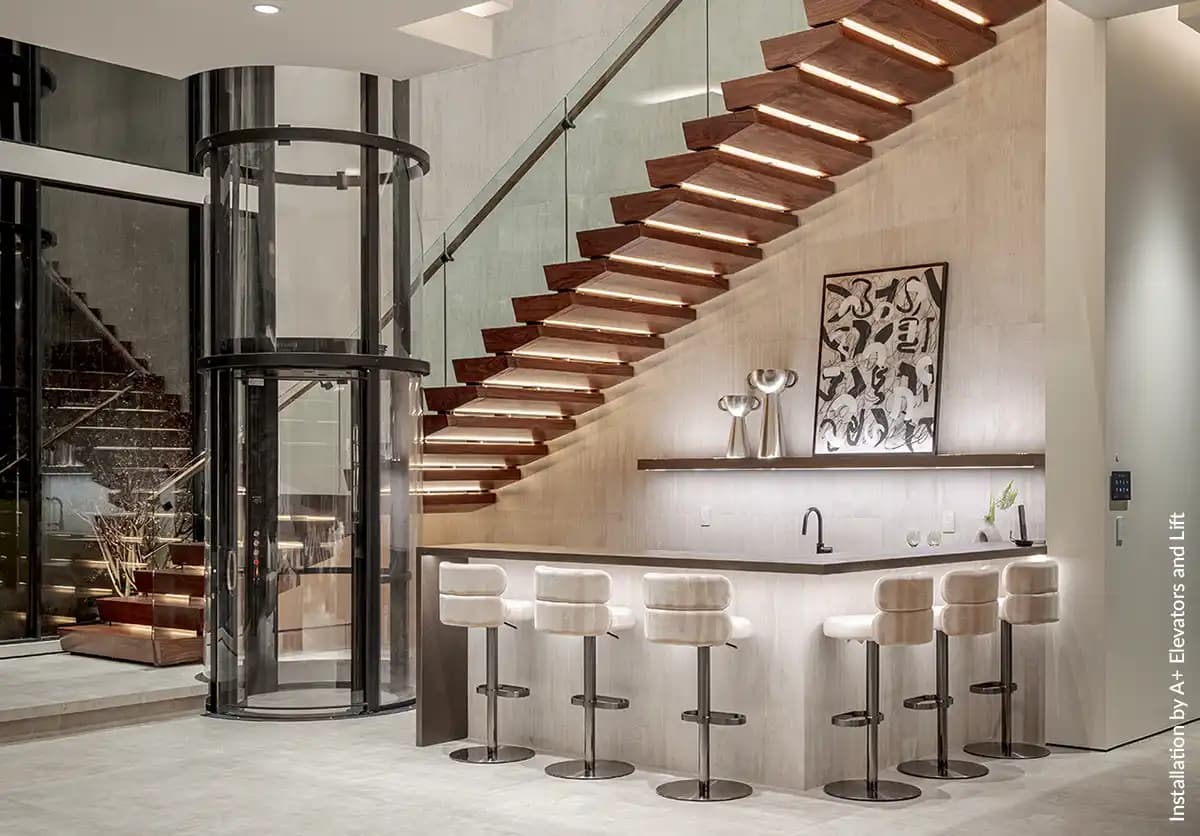

Savaria Vuelift Round Home Elevator

A home elevator with elegant curves and 360 views

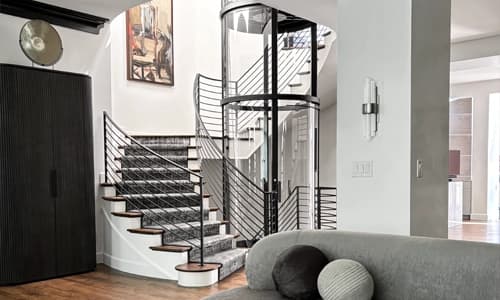

The Vuelift Round elevator delivers a true 360-degree view from the cab. And, in the room, Vuelift Round lets the view and light shine through as well. Available in all-glass, or acrylic, Vuelift Round provides a factory-built luxury cab and hoistway, with simple construction preparation required by the homeowner.

FIND A VUELIFT DEALER

Vuelift Round in Glass or Acrylic

Round Acrylic

The cylindrical design features curved panels in UV-resistant crystal clear acrylic. Framed in powder-coated steel with a curved landing door, the Round Acrylic Vuelift delivers modern luxury that suits many spaces.

Round+ Glass

Featuring low-iron silica glass, with no green hue, the Round+ Glass Vuelift provides sparkly clear views from any angle. The measurements with the Round+ Glass is slightly larger than the Acrylic Round model, with a larger door opening, and a higher capacity. No “short cab” option is available for this model.

Measurement Comparison

Specification	Round Acrylic	Round+ Glass
1. Overhead required	108", optionally 104" or 96" (based on cab height chosen)	108", optionally 104" (based on cab height chosen)
2. Floor cut-out required	56" round + room for trim rings (≈ 6" additional)	59 1/8" round + room for trim rings (≈ 6" additional)
3. Clear gate opening	26" (+/- ½”)	27" (+/- ½”)
4. Minimum distance between landings	93 ½"	93 ½"
5. Interior cab size	51" in diameter	53" in diameter
6. Cab height	84", optionally 80" or 76 ½" (short cab)	84", optionally 80”
7. Cab floor area	13 sq. ft.	15 sq. ft.
8. Floor allowance	Up to ¾" for owner-supplied flooring	Up to ¾" for owner-supplied flooring
