Stairfriend 23 Stairlift

Twin-rail, custom curved, easy-to-use

The Stairfriend 23 curved stairlift features a custom fabricated twin rail system for a great fit on your staircase. Configure the Stairfriend 23 for turns, curves and intermediate landings, as well as out-of-the-way parking. The Stairfriend 23 is known for its reliability and no-nonsense simplicity. Choose from two seats, with a 300lb standard capacity and option for up to a 350lb.

FIND A DEALER

Custom for your stairs – fast

Fit that’s always spot-on

Using our proprietary PS4D photo-measuring system, your local dealer precisely measures your staircase for custom fit. The travel rail is fabricated in just a few weeks in our factory, and installation takes not more than one day. The stairlift installs directly onto your stairs, maximizing the clearance on the stairs to pass by when the stairlift is not in use.

Stairfriend 23 Stairlift

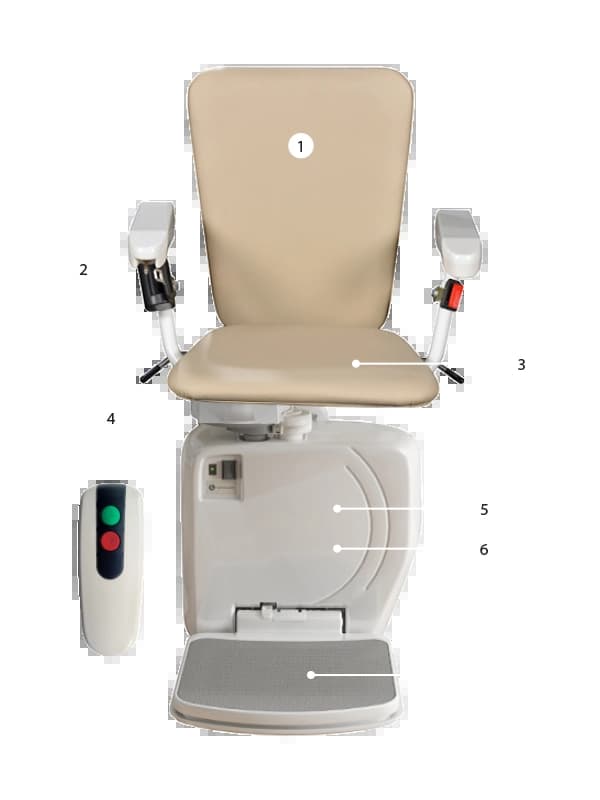

Standard features and finish

The Stairfriend 23 features a light gray rail with beige synthetic leather seat

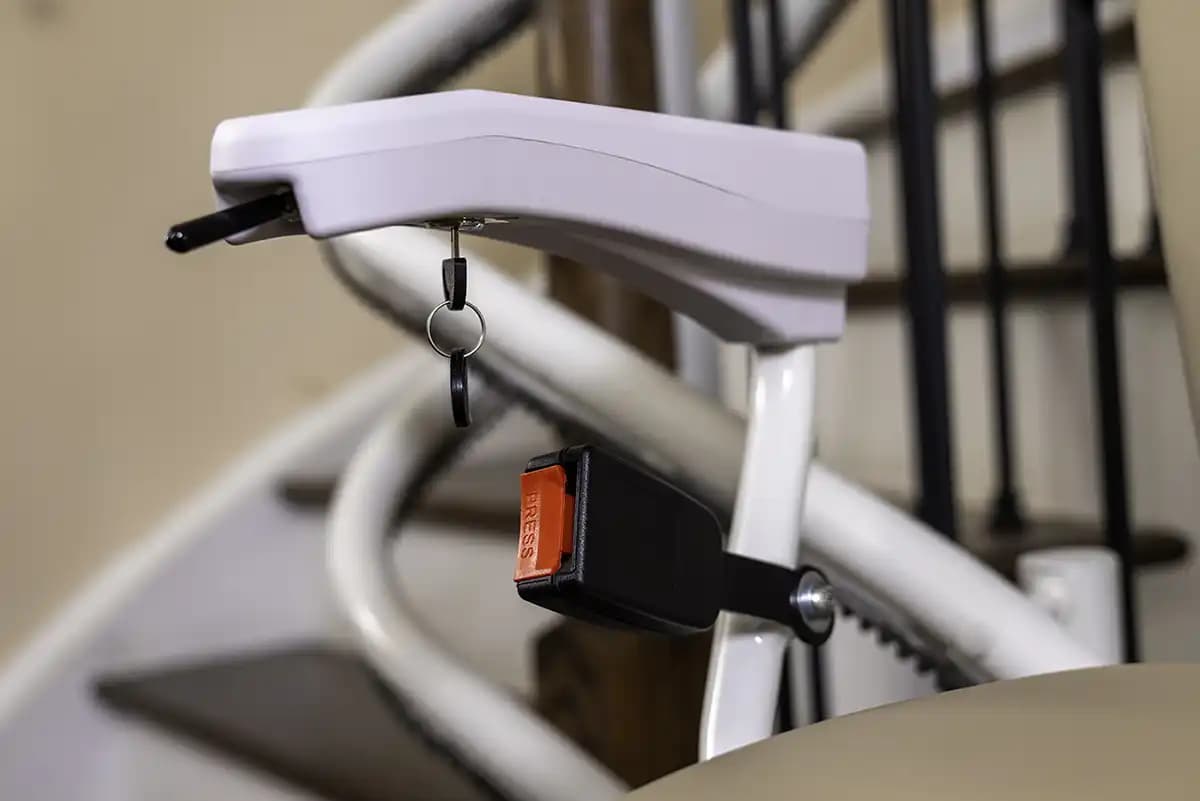

The armrest includes a toggle control to move the lift.

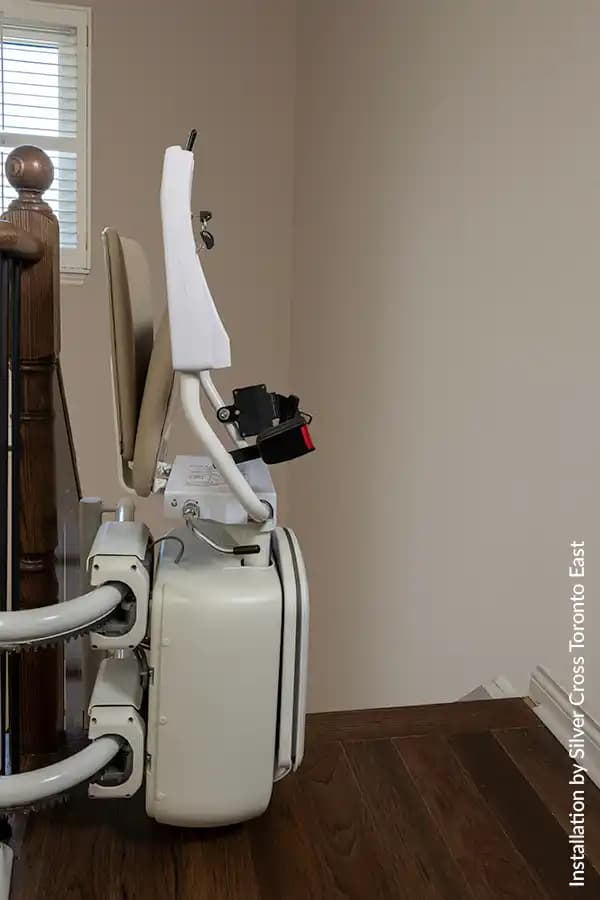

When not in use, the seat, footrest and arms fold up to keep the lift compact
Comes with two radio frequency remote controls to call the lift at the top of bottom of the staircase as needed
A reliable, smooth ride is the hallmark of the Stairfriend 23 with its rack and pinion drive system. It’s battery powered with automatic charging stations at the top and bottom of the rail. During a power failure, the stairlift will provide several up and down trips

Additional Options

Parking

Add 90- or 180-degree parking so your chair travels around the stair railing at the top, bottom or both landings. This provides a more spacious and safe area to get on and off the lift.

Overrun

Add a top or bottom overrun to have the stairlift travel farther away from the landings for a more convenient on/off area.

Key

The standard lift includes keyed opportunity for security, but you can also order it as keyless.

Emergency Stop

Add an emergency stop bottom on the armrest (included in Quebec).

5 Point Harness

A five-point harness can be added for additional security on the chair in place of the retractable seat belt. You can upgrade to 350lb capacity.

*capacity is limited to 300lb for this option

Choose a Seat

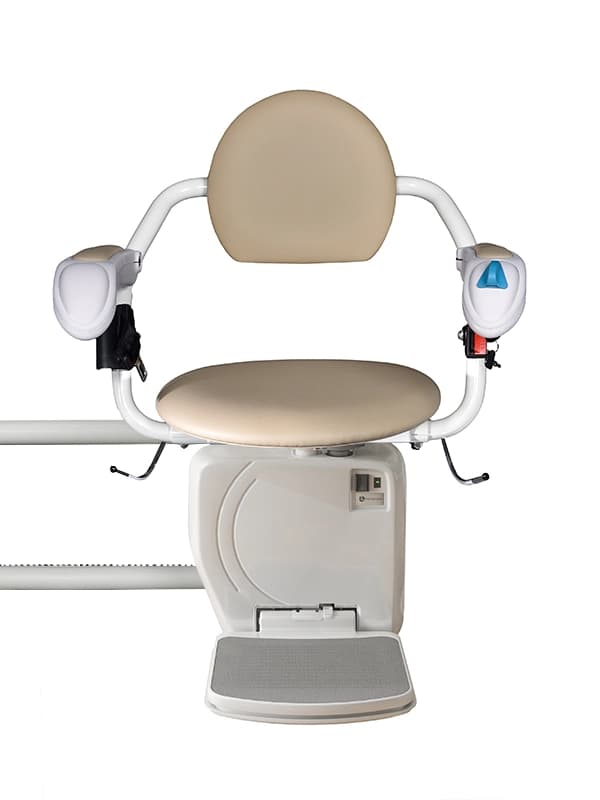

The Stairfriend 23 offers a choice of two seat designs. The L seat is traditional look (arms width up to 21.5″), whereas the V seat is more minimalist with open areas on the back and sides, which some find more comfortable due to its more spacious feel (arms width up to 20.5″).

Choose a Seat Type

Stairfriend 23 Specifications

Applications

Residential, commercial*, indoor.

Motor

0.6 hp, 24V (DC)

Standard capacity

 300 lb (136 kg), optional 350 lb (160 kg)

Fold-up depth

16.25″ (413 mm)

Maximum travel

84′ (25.60 m)

Fold-out depth

27″ (686 mm), with offset footrest: 25.75″ (660 mm), with small footrest: 25″ (640 mm)

Nominal speed

20 ft/min, (0.1 m/s), 12 ft/min (0.06 m/s) through curves

Range of incline

0˚ to 56˚

Savaria Link

Optional. Learn more..

Warranty

A 36-month warranty against defective parts is included through your local dealer.*

*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

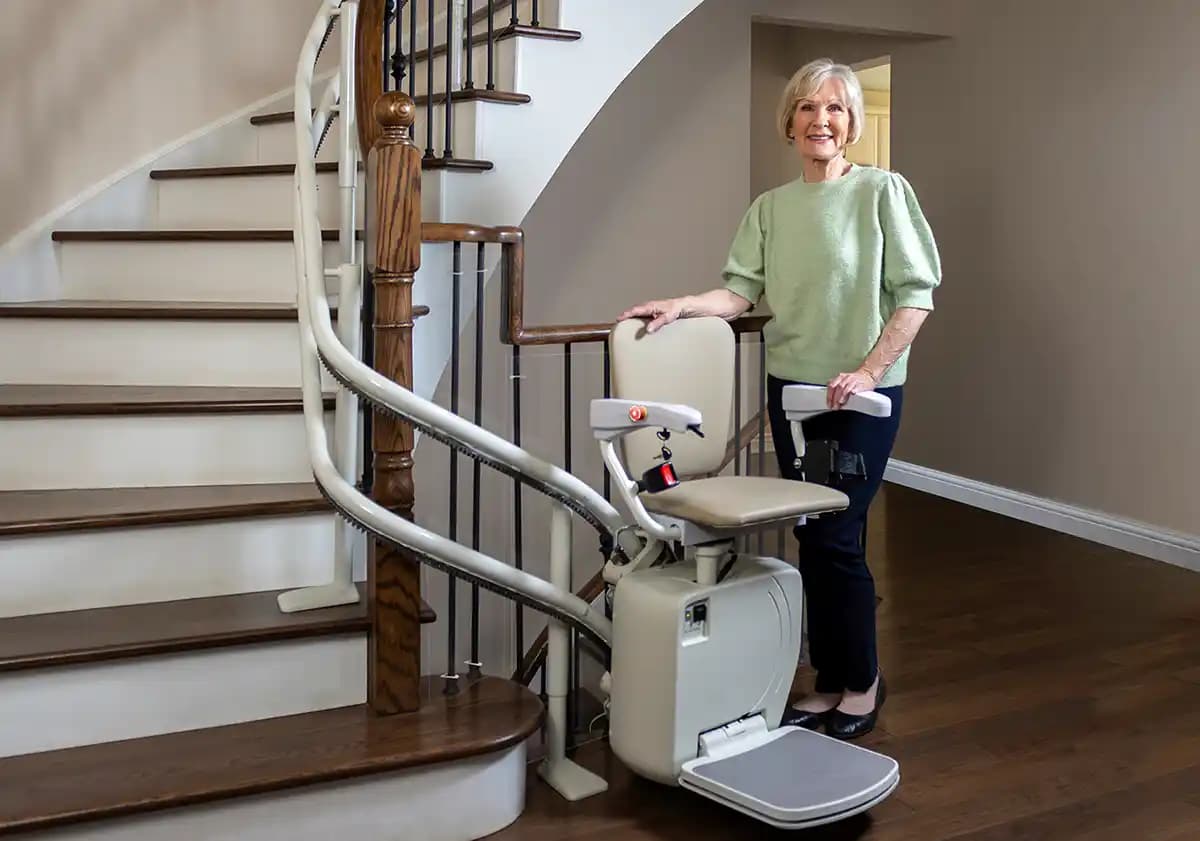

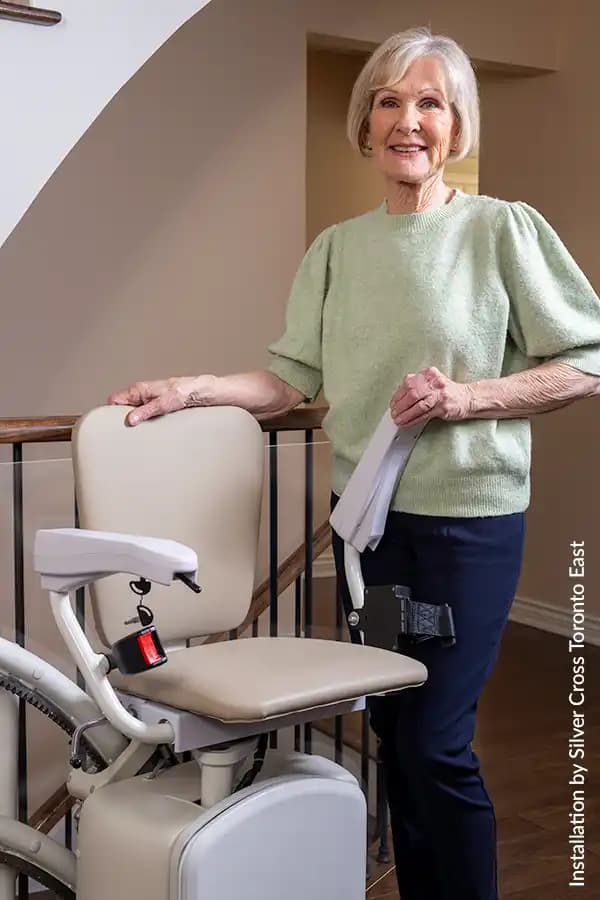

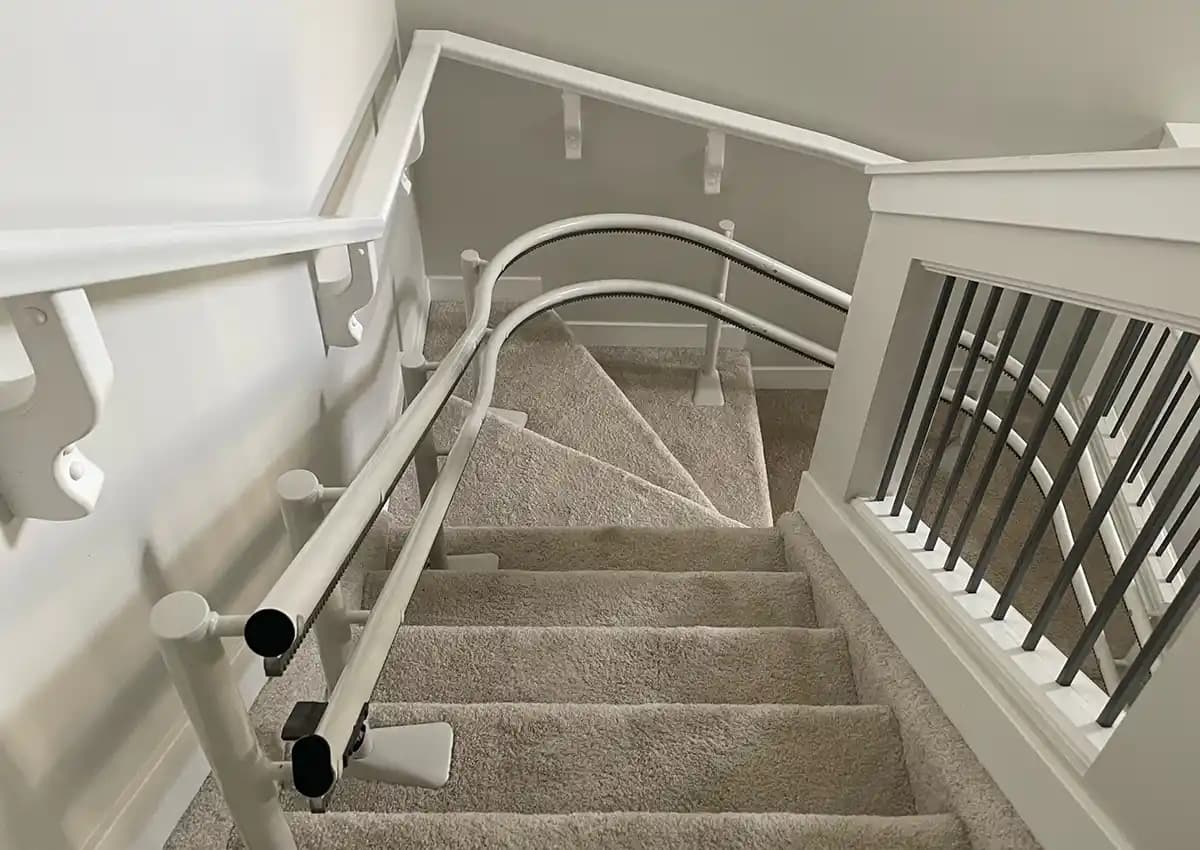

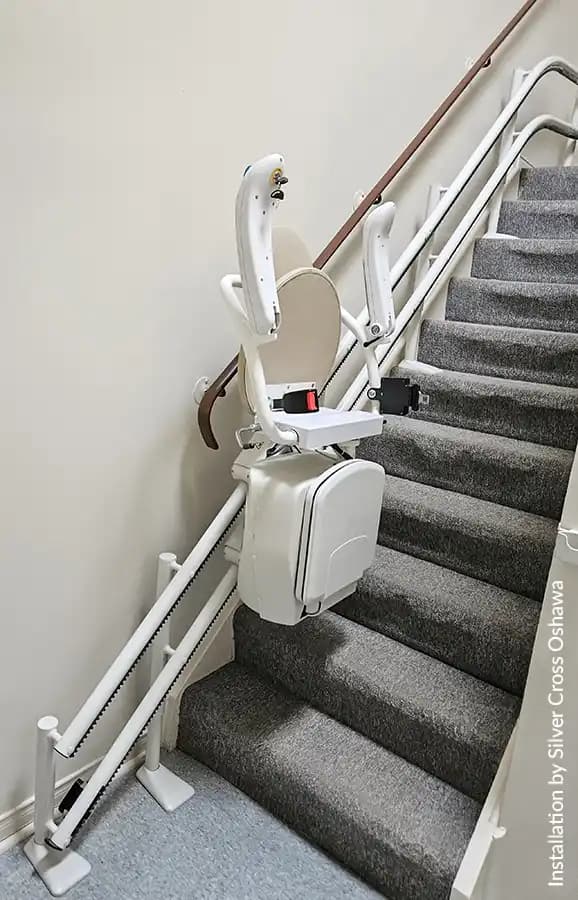

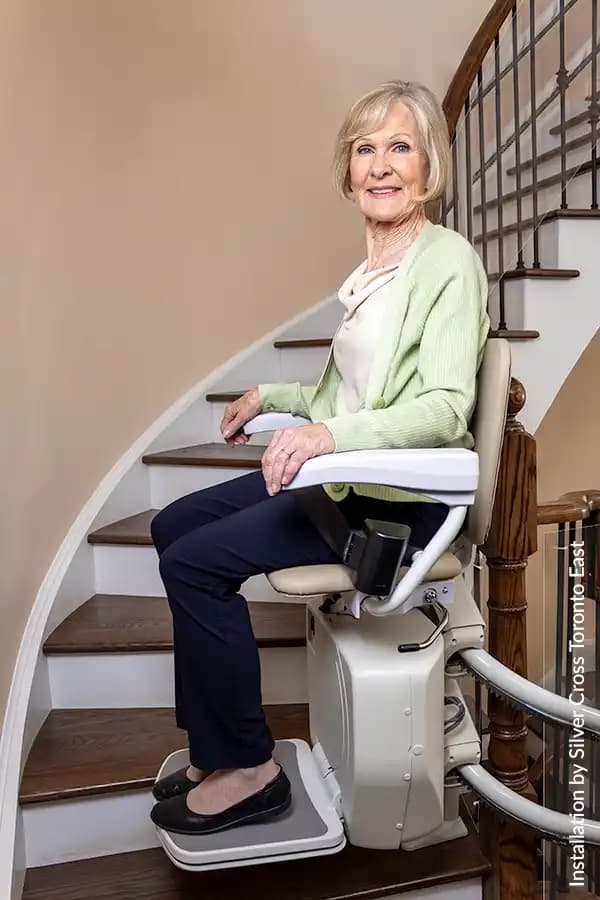

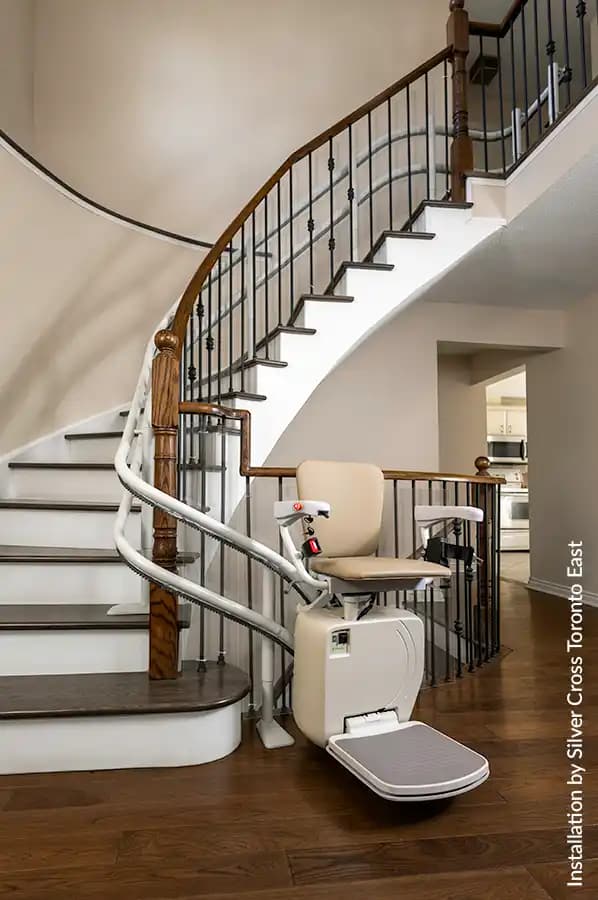

Stairfriend 23 Gallery

See Stairfriend 23 stairlift installations
