Savaria Pegasus Inclined Platform Lift
Wheelchair lift for curved stairs

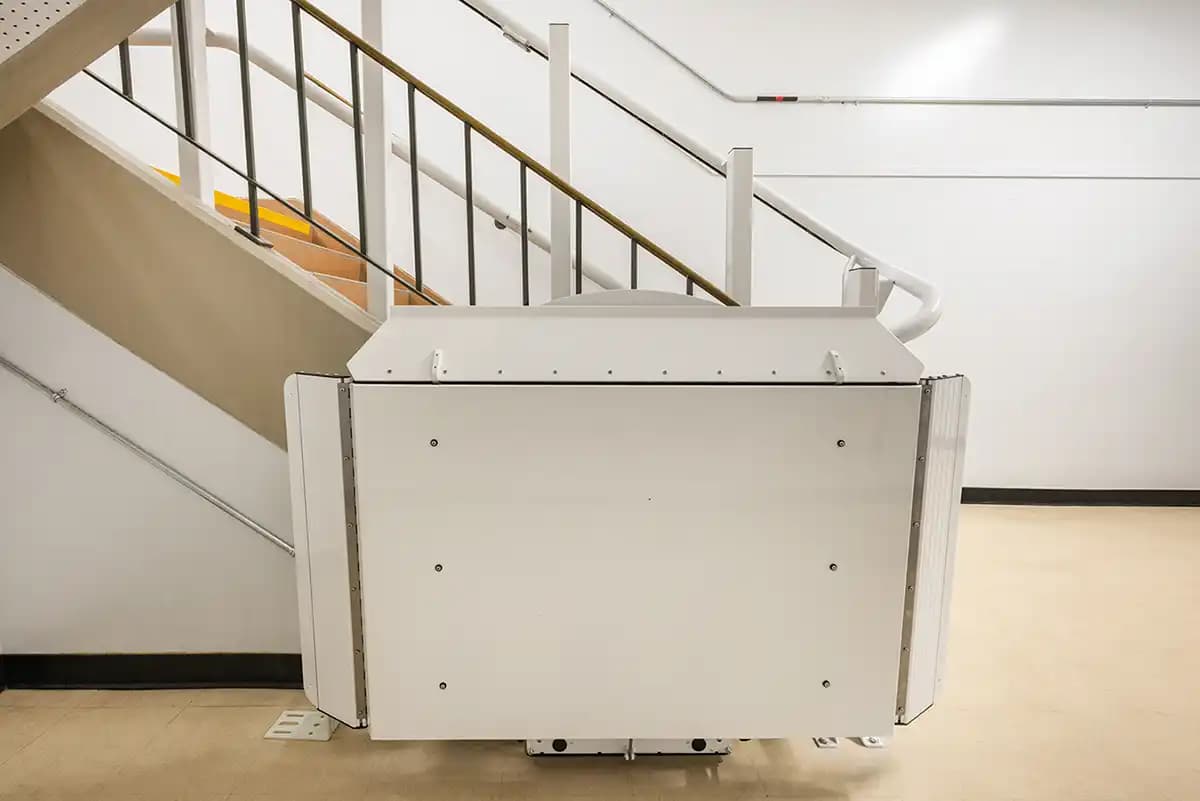

The Savaria Pegasus inclined platform lift provides wheelchair access over stairs that feature curves, changes of direction, intermediate landings or multiple levels. The platform folds up when not in use, and can be parked out the way. With a choice of platform size, including an ADA-compliant size, the Pegasus lift can make your public building accessible. Ideal when a vertical lift or elevator cannot be used, the Pegasus lift can be installed indoors and outside in moderate climates.
Note that the Savaria Pegasus is not available in Quebec. Contact our offices for a suitable replacement.
Why Choose the Savaria Pegasus Wheelchair Lift
On-demand wheelchair lift travels over stairsget design toolsNo machine room is needed as the Pegasus wheelchair lift’s motor and drive controller can be installed at the top landing in a small cabinet. This saves space and reduces construction costs.

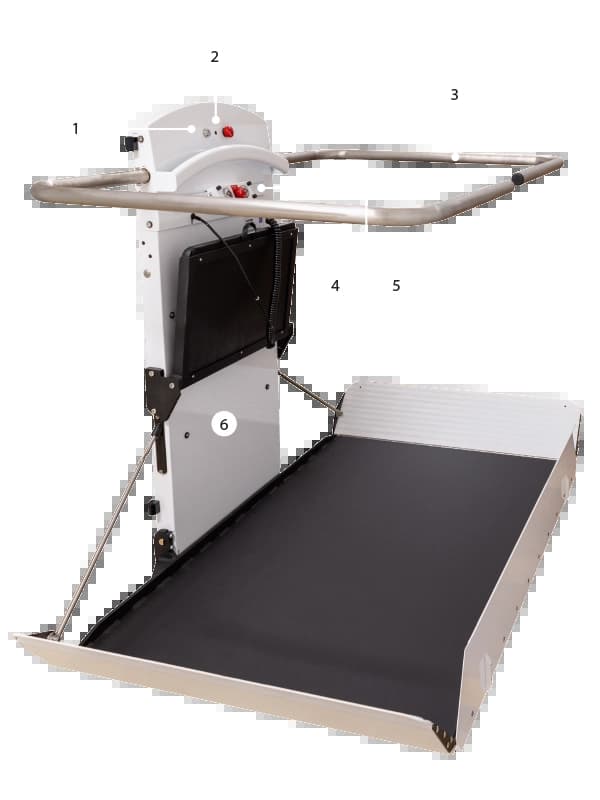

Pegasus Inclined Platform Lift
Standard features and finish
- Keyed call stations and operating panel.
- Light-up diagnostic display on the lift that alerts of possible issues such as an obstruction.
- Handrail on the platform.

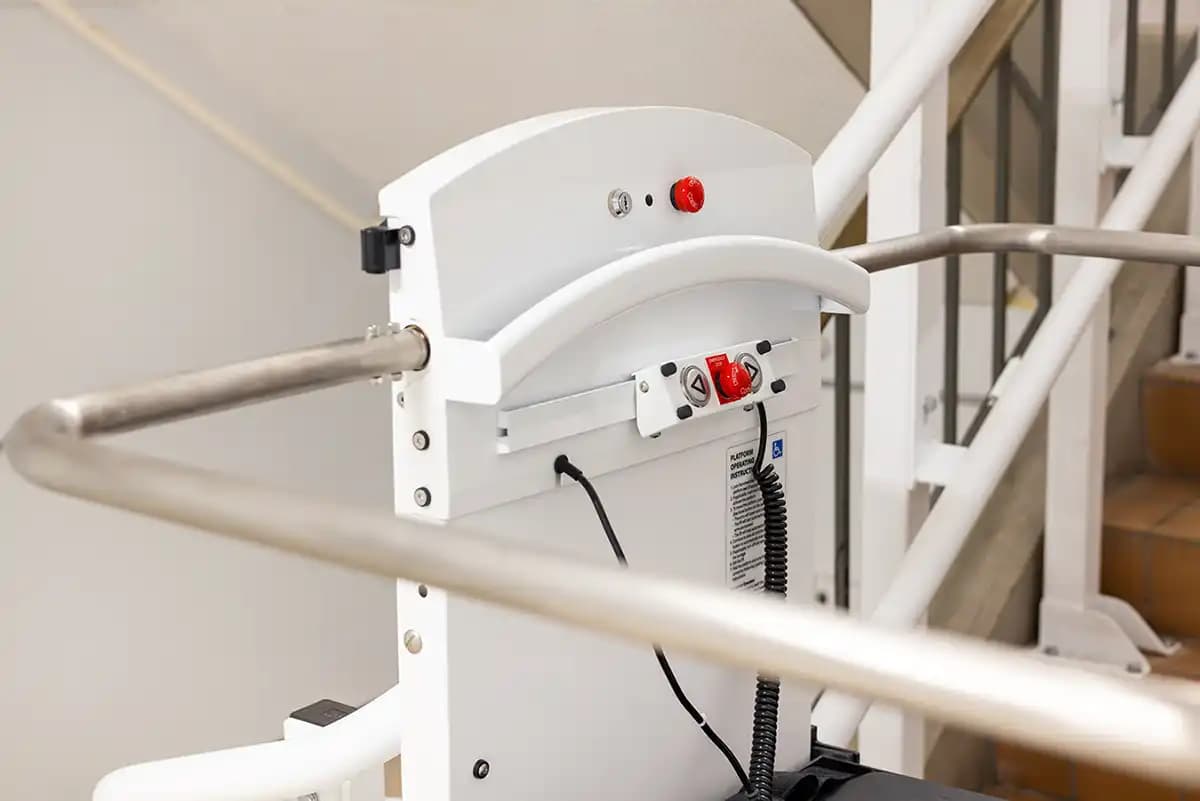

- Control panel on the lift, as well as a pendant controller with simple-to-use constant pressure buttons for up and down movement.
- Emergency stop button on the lift and the pendant.
- White (RAL 9003) as standard color with outdoor units requiring stainless steel rails.
Pegasus Options
Commercial package
For public buildings, the commercial package includes motorized folding arms and platform, additional battery pack, audio visual alert and folding seat.
Parking
Add a parking feature at 90 or 180 degrees so the lift stops away from the stairs at the top or bottom landings.
Custom Color
The platform, carriage and rails can be ordered in a custom color, or you can order stainless steel rails alone.
Call Station
Call stations can be surface mounted, or optionally mounted on free-standing pedestals at the top and bottom landings.
Compact Drive System
A compact drive system option is available for limited space.
Additional Battery
For indoor units, a UPS back-up battery can be added to allow the lift to operate for an extended period of time. If the lift travels below an angle of 20•, a stabilizer bar (horizontal rail), is required.

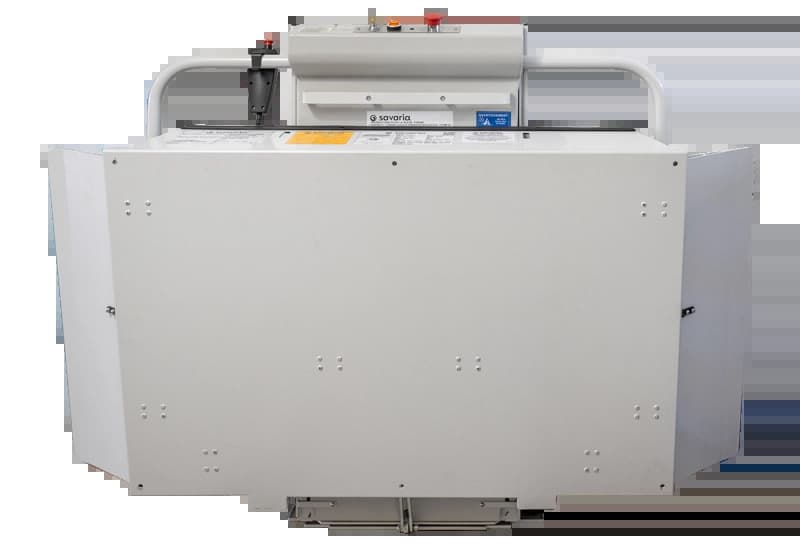

Have a single flight of straight stairs?

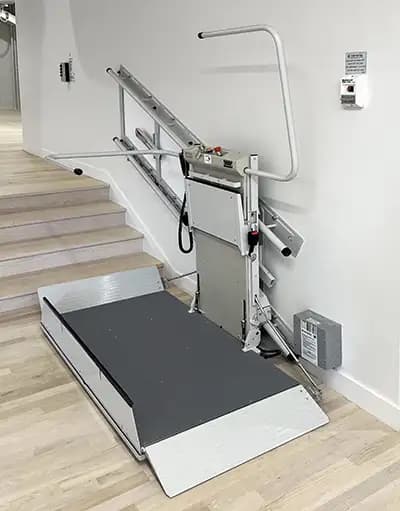

If your stairs have a single flight of straights stairs, consider the Delta inclined platform lift
Pegasus Specifications
Applications
Residential, commercial, indoor, outdoor (in moderate climates)
Motor
2 hp (0.5 kW)
Standard Capacity
660 lb (300 kg)
Range of incline
20˚ to 45˚ (55 ˚ for residential use)
Capacity of optional folding seat
330lb (150 kg)
Maximum Travel
164 ft (50 m)
Travel speed
0-30 ft/min (0.10-0.15 m/s) varies with the stair angle, 10 ft/min (0.05 m/s) through curves
Minimum travel
8″ (20 cm)
Access
Straight through, or 90-degree access
Travel speed
20-30 ft/min (0.10-0.15 m/s) varies with the stair angle, 10 ft/min (0.05 m/s) through curves
Platform sizes
48″ x 311/2″ (1220 mm x 800mm)
413/8″ x 311/2″ (1050 mm x 800mm)
Custom platform sizes available
Warranty
A 36-month warranty against defective parts is included through your local dealer.**
*USA only
**Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Photo measuring for a perfect fit
We use our proprietary PS4D measuring system to precisely measure the staircase and fabricate the rail for a tailored fit.

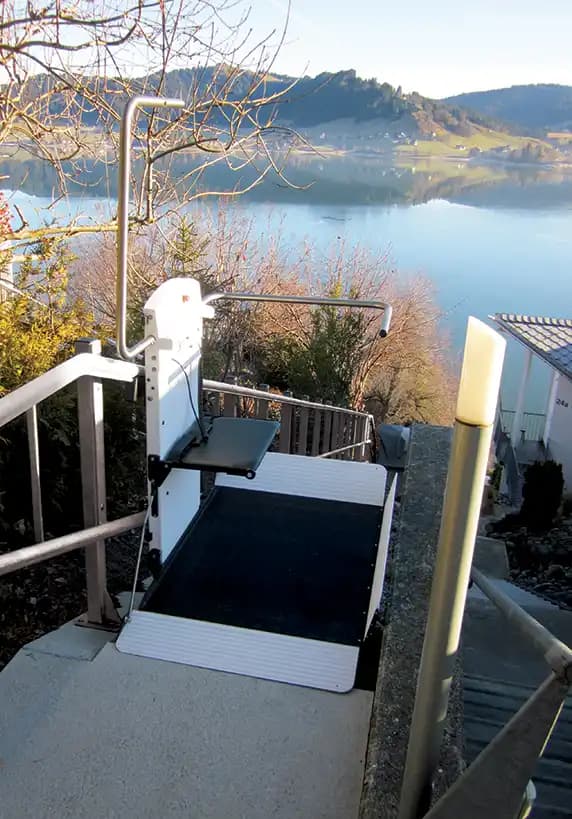

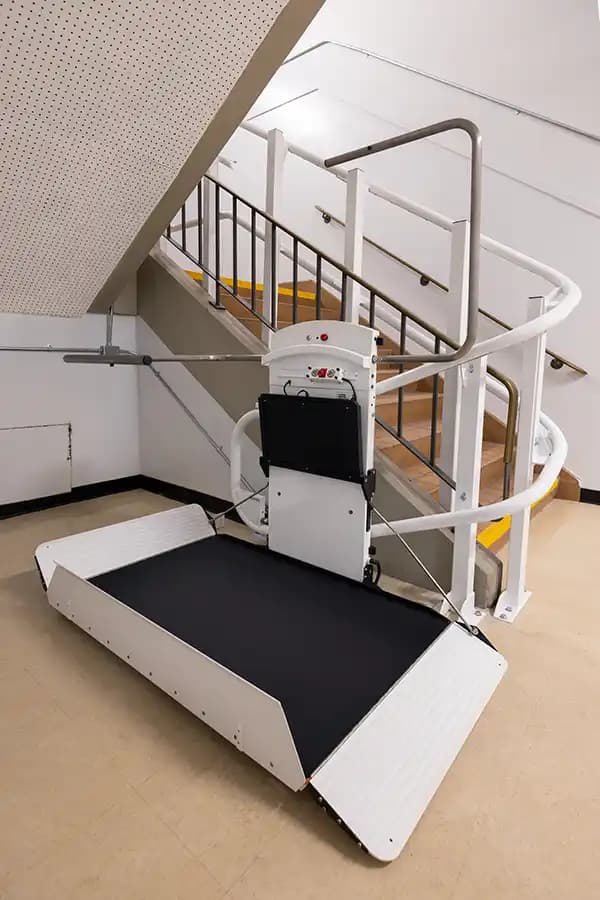

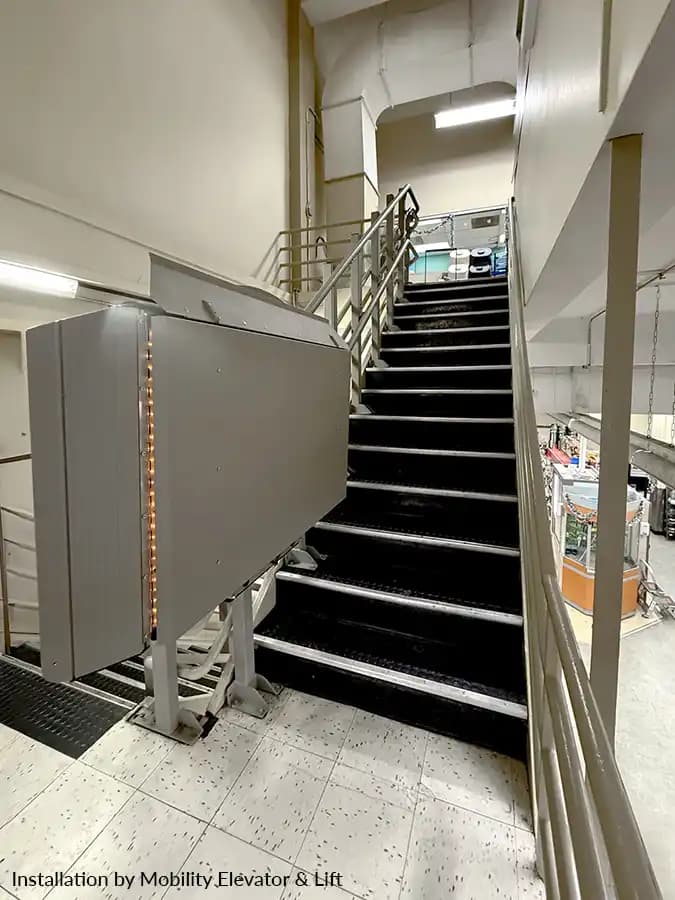

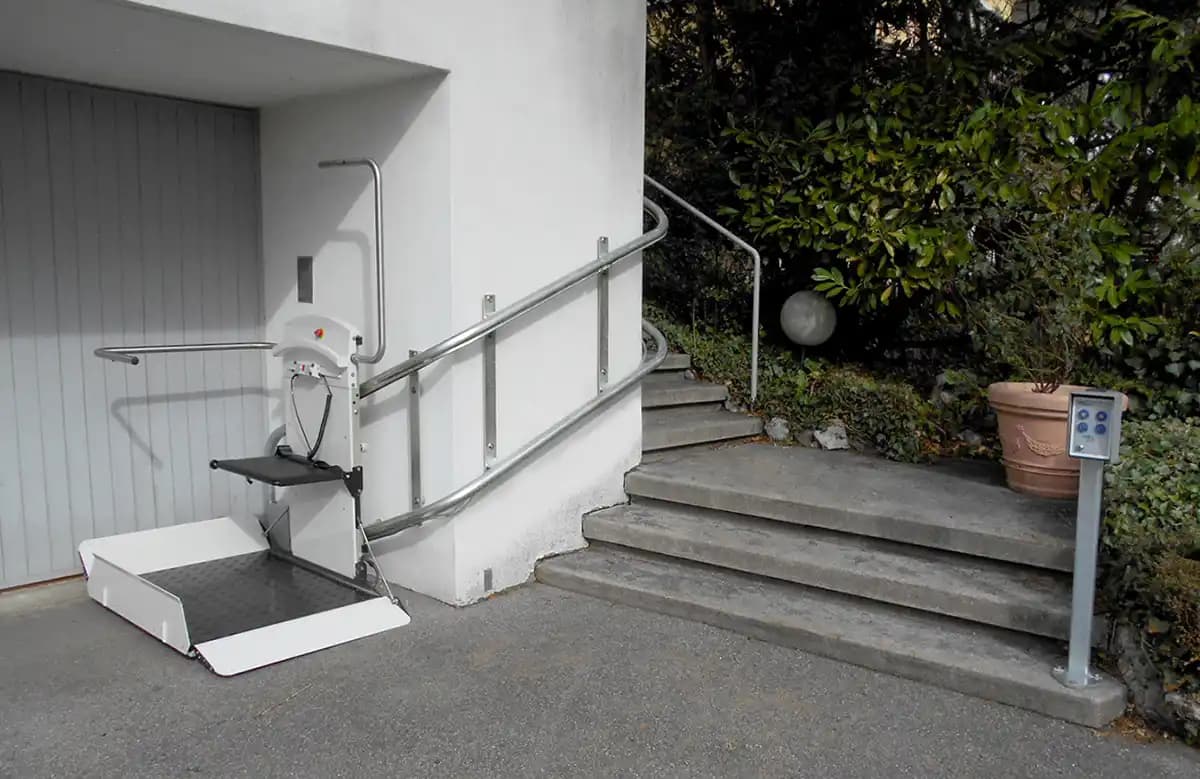

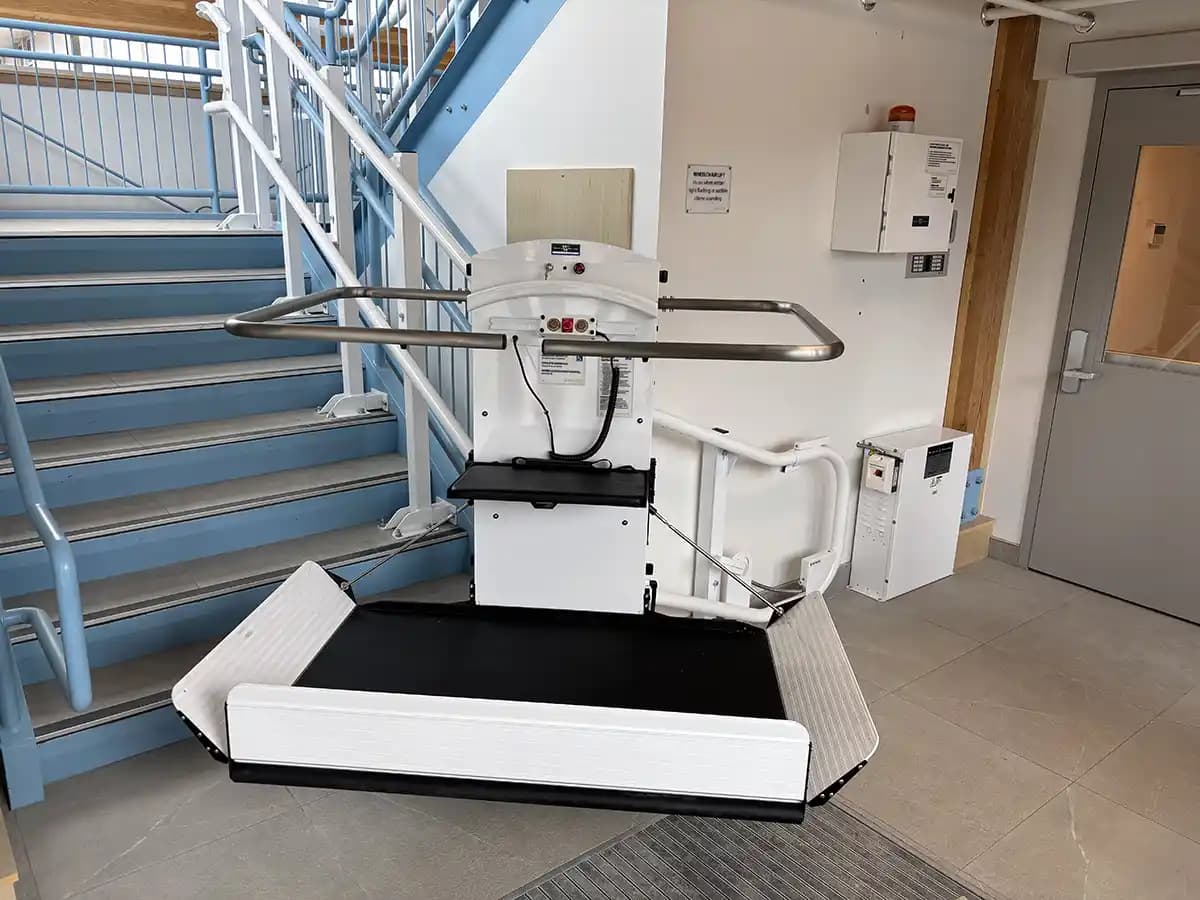

Pegasus Gallery
See Pegasus inclined platform lift installations

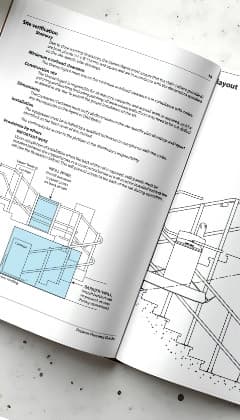

Site preparation
Be sure to consult the planning guide for more information about site preparation and space requirements including the lower landing, turning and overhead clearance needed.

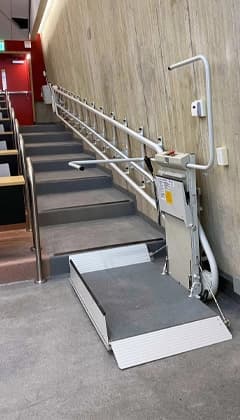

Other commercial accessibility information
Learn more about commercial accessibility, what options are available and how to make your public building accessible here
