Freecurve Stairlift

Single tube design, custom curved

Our popular Freecurve stairlift is a single rail design, favored by many clients for its elegant look. The curve-hugging style works well for even narrow or spiral-style staircases with its optional 2-way power swivel that can turn as you go up or down, saving space. Glide smoothly around any curves and turns with the Freecurve. Also available is an active seat that gently raises and lowers to help you in and out of the chair.

FREE HOME ASSESSMENT

Custom fit design

A perfect fit, every time

Your local dealer precisely measures your staircase with our proprietary PS4D photo measuring system. This also allows you to see seat options and the rail – virtually on your staircase. All this happens before you place an order. We use the PŞ4D data to custom fabricate your stairlift in just a few weeks so you get a great fit, delivered quickly.

Freecurve

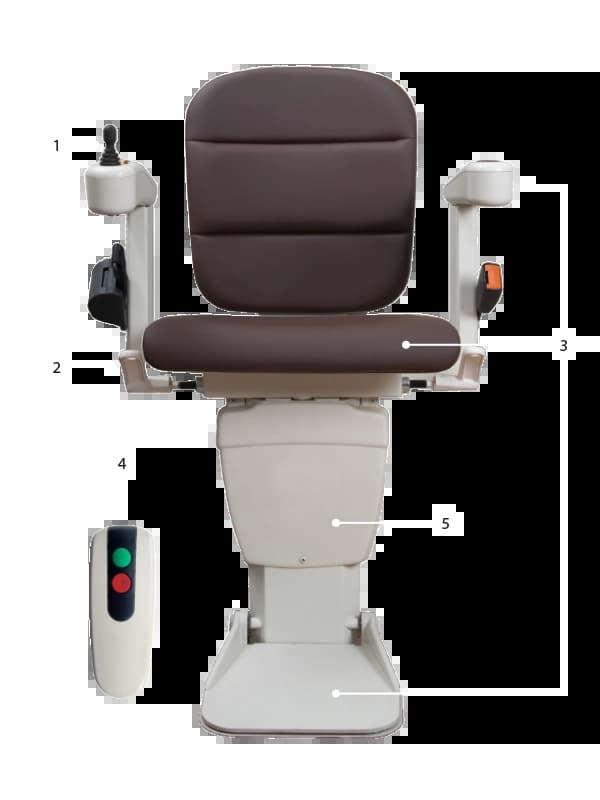

Standard features and finish

The stairlift is easy to use with a joystick built into the armrest for movement control.
A swivel and lock seat provides security to get on and off the lift at the top landing.
The seat, footrest, and arms fold up compactly when not in use.
Comes with two remote controls to call the lift, as needed, at the top or bottom of the stairs.
The Freecurve stairlift is battery powered with built-in top and bottom charging stations. You can use the stairlift several times during a power failure.

Additional Options

The Freecurve offers several power upgrades including:

2-way pivot swivel

For very narrow staircases, or tight spirals, the 2-way powered pivot swivel turn the chair automatically as it moves up and down. This provides room for your knees as the stairlift travels.

Power Swivel

A powered seat swivel (turns 80 degrees automatically at the top landing) for safer transfer on and off

Power footrest

The power folding footrest with LED light to improve visibility in low lit areas

2-way power swivel

Automatically pivots your chair forward while riding to allow more room for your knees on narrow staircases

Power hinge

A power folding hinge is also available to keep the bottom rail out of the way when there is a door or entranceway nearby.

Active seat

Similar to a lift and recline chair, the Freecurve active seat gently raises you to standing position when seated, or lowers you slowly into a seated position from standing. The active seat can be added to the Elegance, or Alliance chairs. This option is not available in Quebec.

Parking

Add 90- or 180-degree parking so your chair travels around the stair railing at the top, bottom or both landings. This provides a more spacious and safe area to get on and off the lift.

Overrun

Add a top or bottom overrun to have the stairlift travel farther away from the landings for a more convenient on/off area.

Key

The standard lift includes keyed opportunity for security, but you can also order it as keyless.

5 Point harness

A five-point harness can be added for additional security on the chair in place of the retractable seat belt.

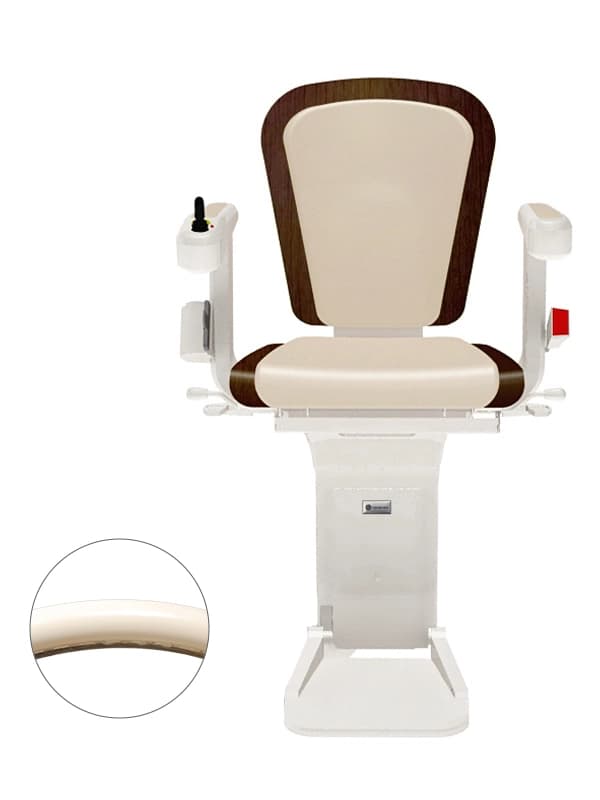

Choice of Seat

The Freecurve offers a choice of three seat designs.

Alliance seat features beige seat with brown trim.
Elegance seat is available in beige or brown.
Classic seat, if you have zero taste and like the look of old tobacco stains (okay, for real, is available in beige or slate)
Petite seat: appropriate for smaller users, including youth.

Choose a Seat Type

Choose a Seat Colour

Beige

Brown

Slate

Choose a Rail Colour

Cream

Grey

Brown

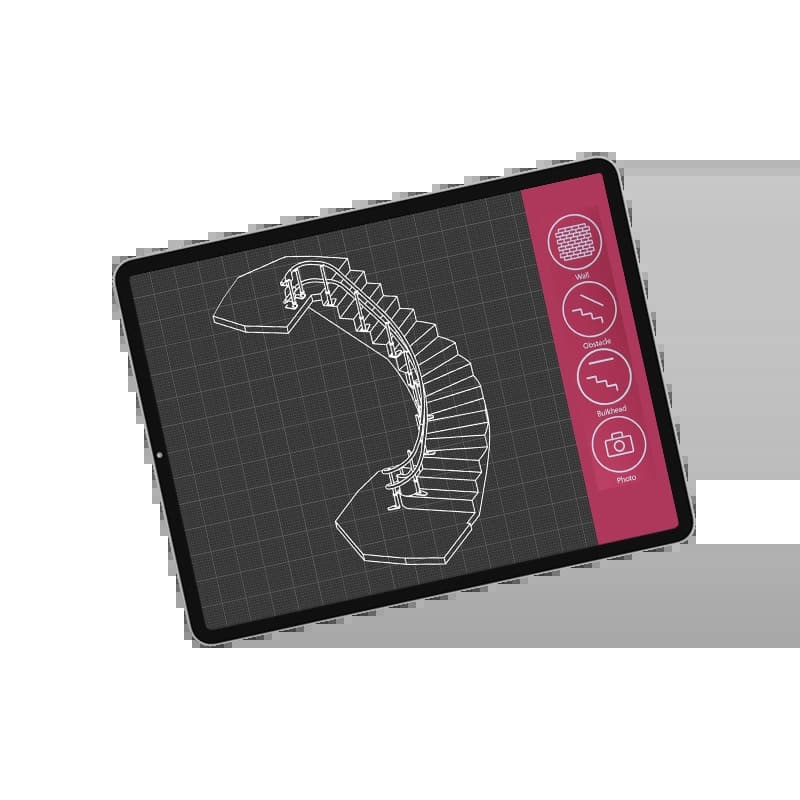

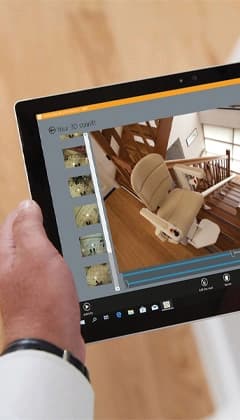

Learn more about our perfect fit process

Discover how our PS4D photo measuring system can get you the tightest fit to accommodate almost any curve, along smoothest ride on every trip.

Freecurve Specifications

Applications

Residential, indoor

Motor

0.5 hp, 24V (DC)

Standard capacity

75 lb (125 kg)

Fold-up depth

16 ½”-17 ½” (419-442 mm), see seat measurements for more info

Nominal speed

21 ft/min, (0.11 m/s), 12 ft/min (0.06 m/s) through curves

Fold-out depth

25 1/4″-26″ (638-660mm)

Range of incline

0˚ to 61˚

Warranty

A 24 month warranty against defective parts is included through your local dealer.*

*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

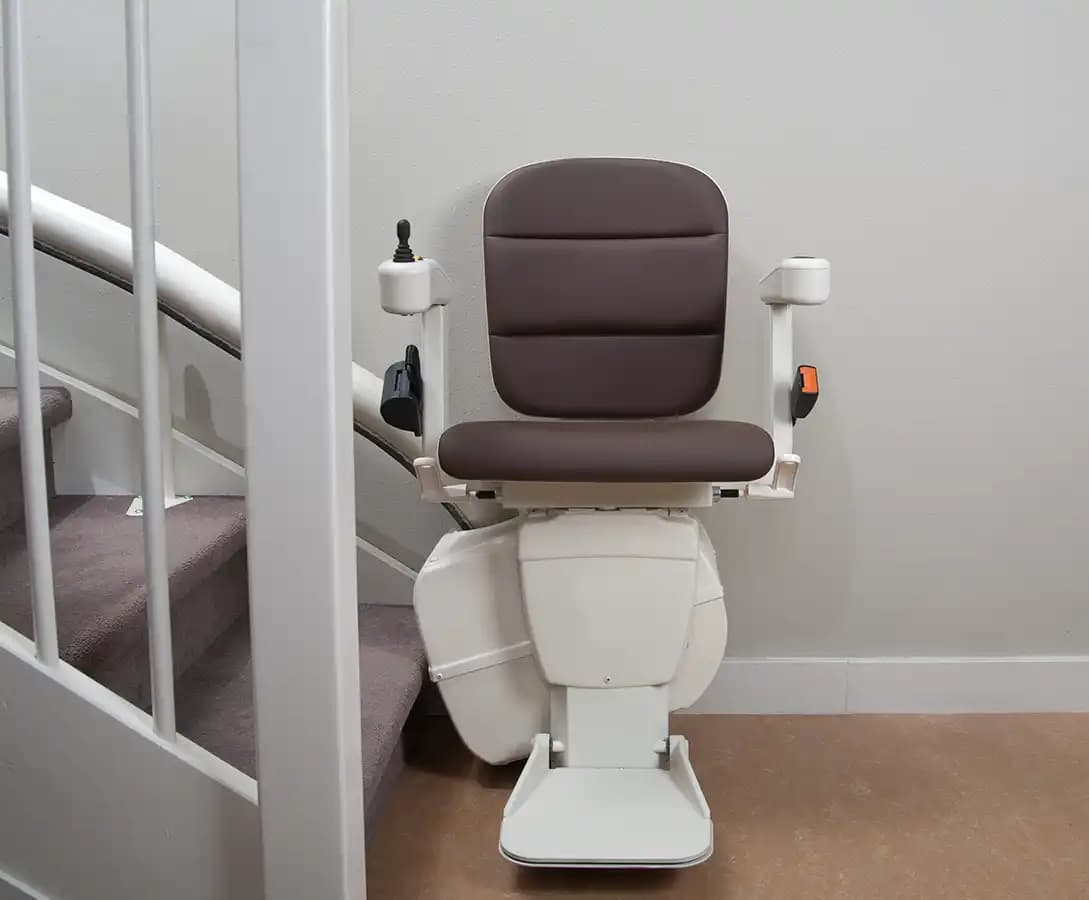

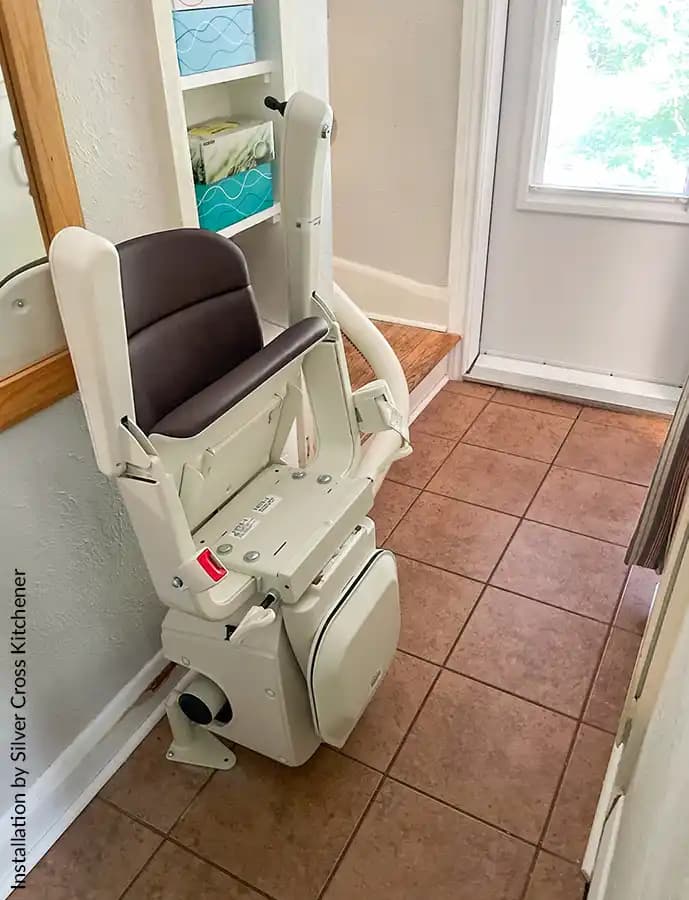

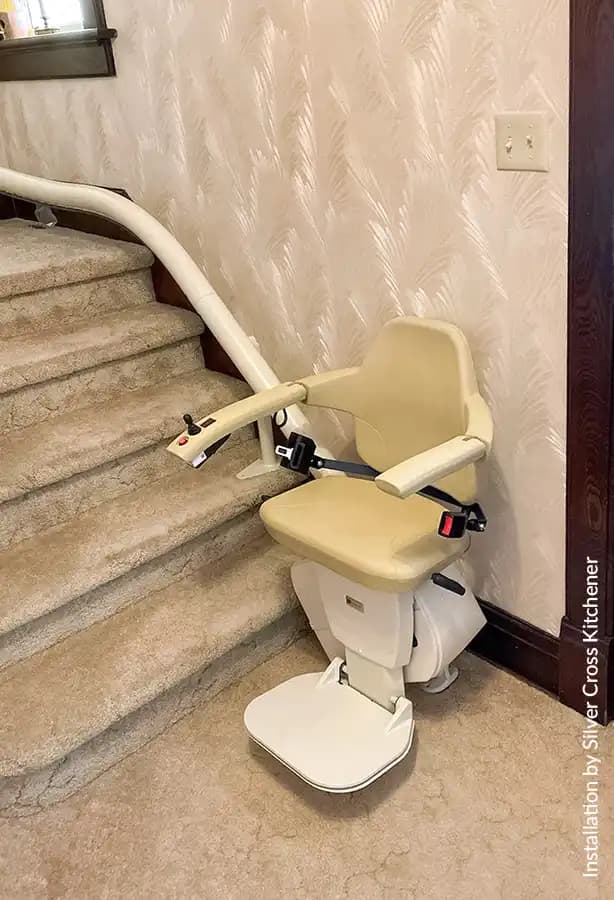

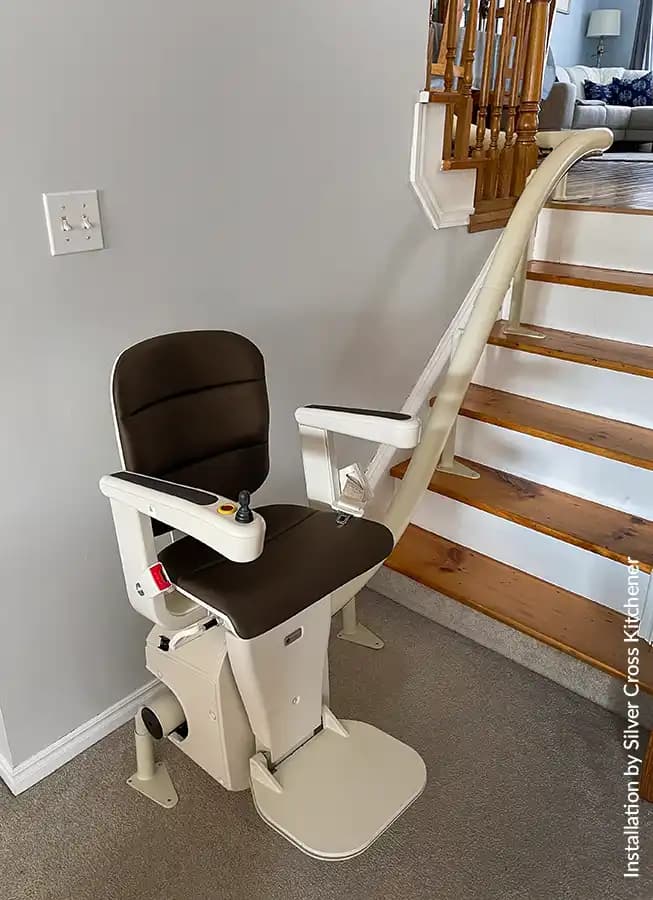

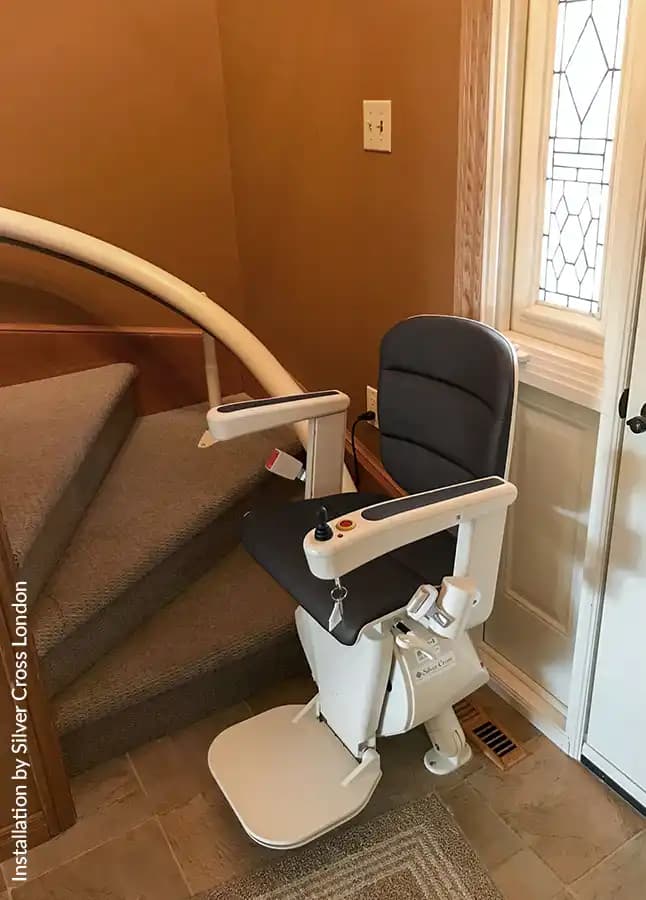

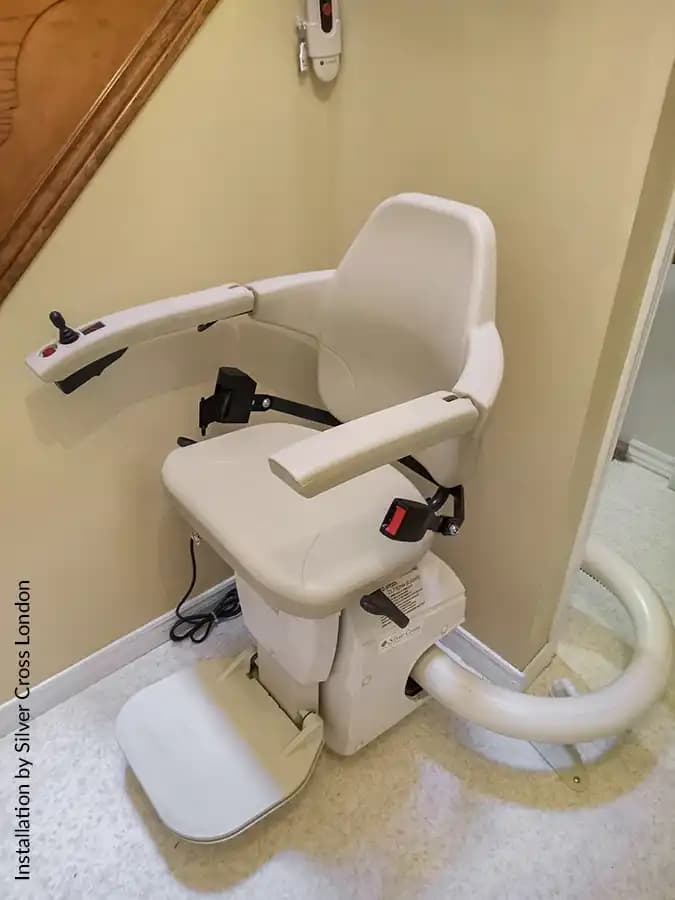

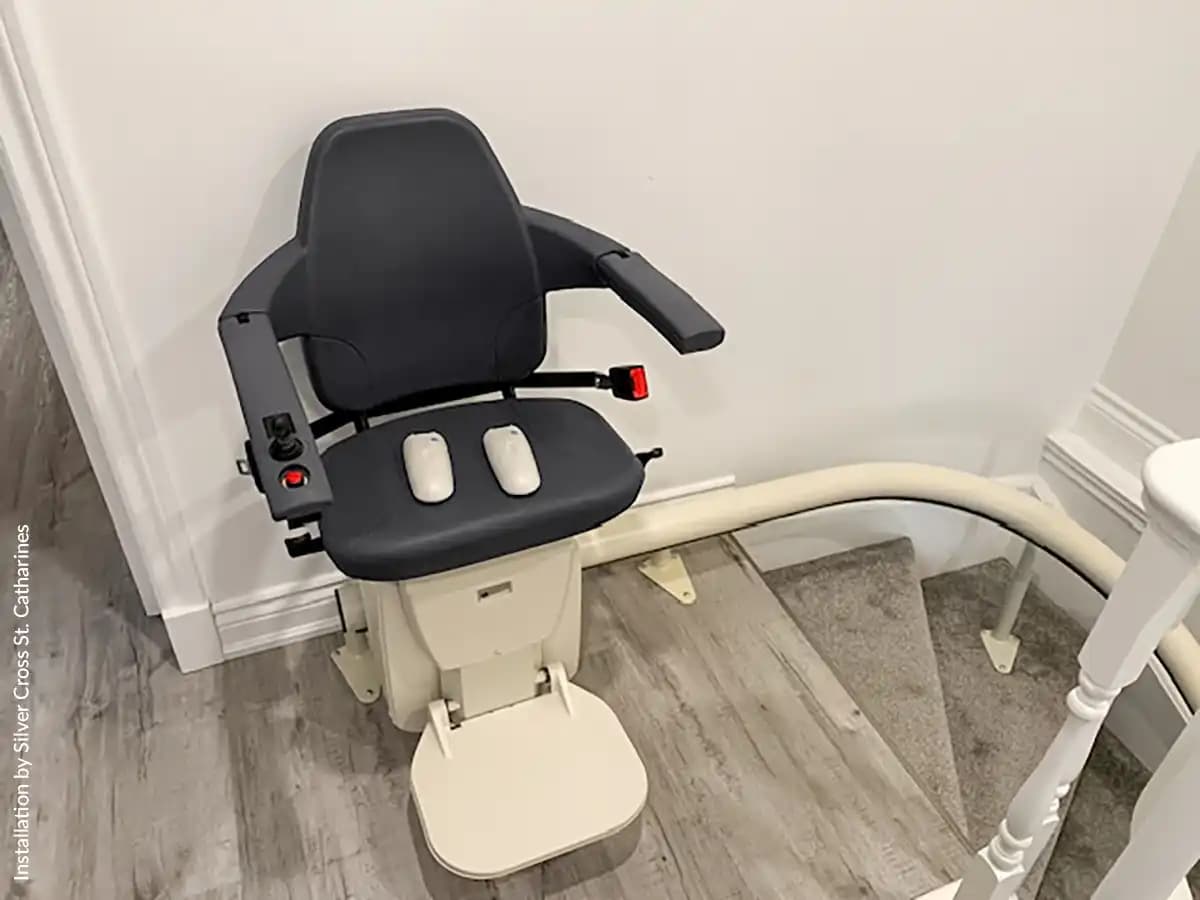

Freecurve Gallery

See how great Freecurve looks

Safety features

An obstacle sensor on the footrest and carriage stops the lift if it encounters an obstruction.
The seat swivels and locks for safe deboarding at the top of the stairs.
The footrest includes non-skid covering and the seat includes a retractable seat belt.
An overspeed governor ensures that the lift does not travel too fast when descending.
The stairlift includes keyed access to prevent use of the lift as needed.
