V-1504 Lux Vertical Platform Lift
Elegant glass enclosure with stainless frame
The Savaria Lux V-1504 wheelchair lift, a variant of our V-1504, features a stainless steel framed enclosure with glass inserts. The hydraulic drive system does not need a machine room, and the Lux is suitable for both outdoor and indoor applications. The Lux serves up to 4 stops with 10’ travel (12’ subject to local code).
Customize to suit

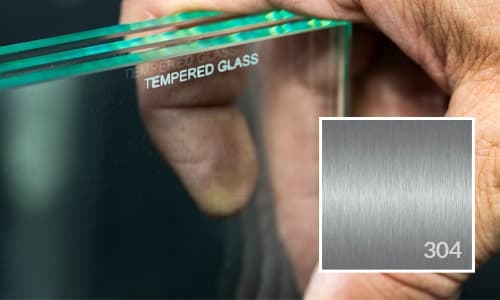

The Lux features 304 stainless steel number 4 finish for framing and tower cladding. The enclosure includes tempered or laminated glass inserts for weather protection with beautiful aesthetics. The standard platform size is 36” by 54” (ADA-compliant), with custom sizing up to 42” by 60”. The lift can be configured for one or two entrances with straight-through or 90-degree access.

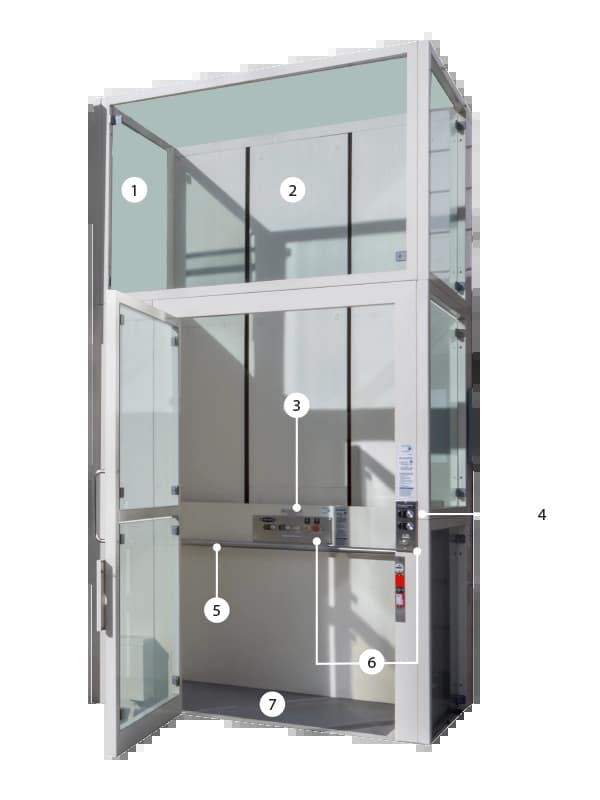

V-1504 Lux
Standard features and finishes
- Stainless steel framing with either tempered glass or laminated glass insert panels.
- The standard finish is stainless steel cladding for the tower

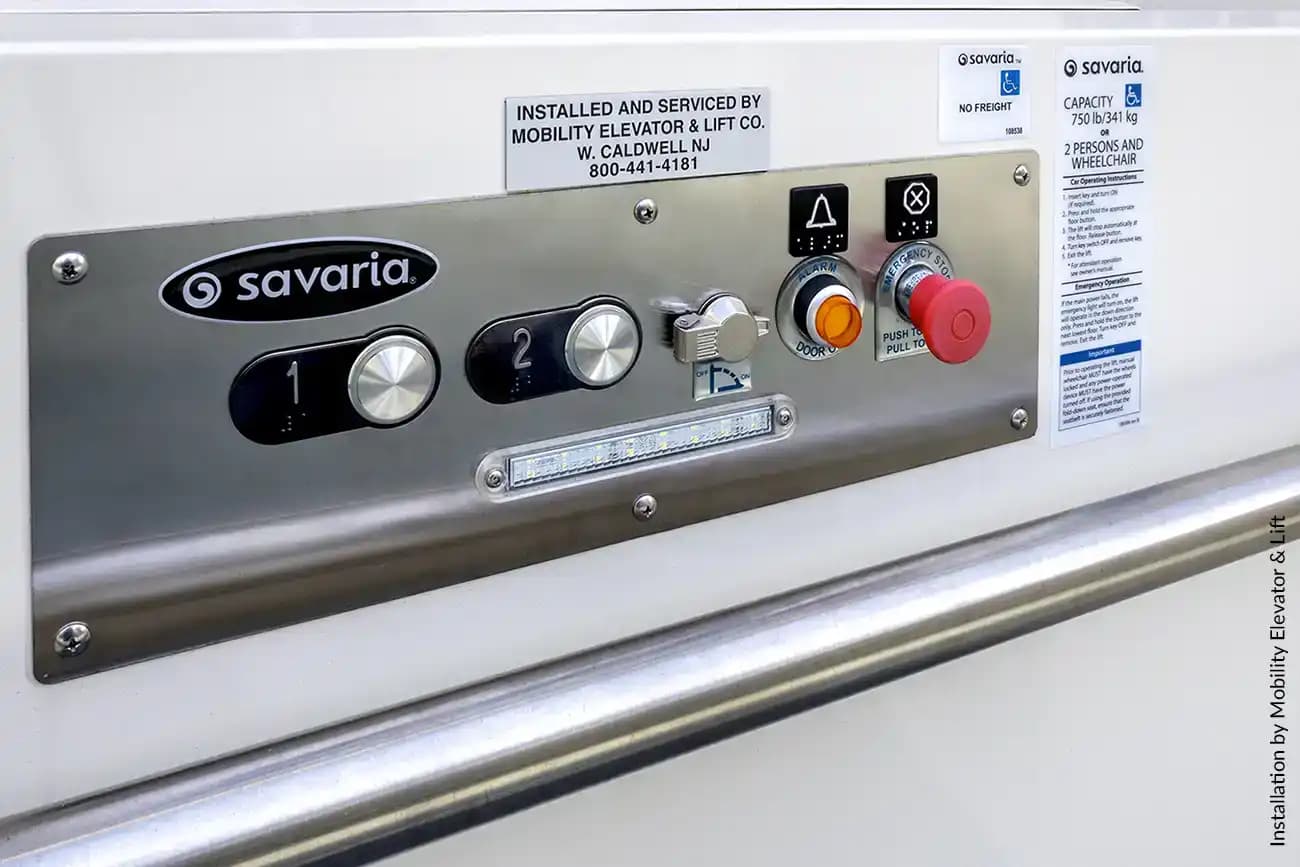

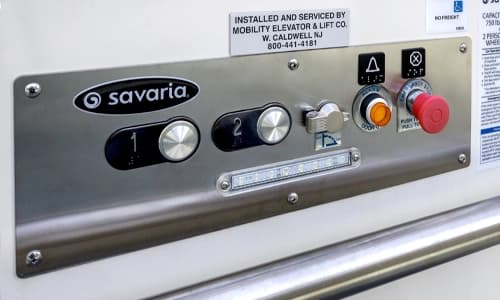

- Operating panel on-board the lift that includes an emergency stop/alarm button

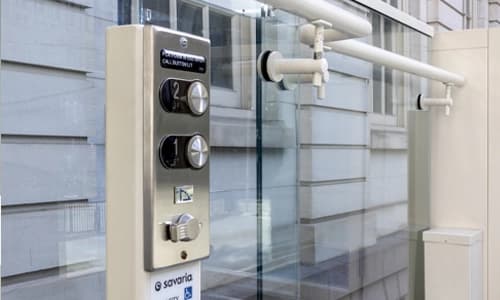

- Call stations are included for each landing to summon the lift
- A full depth handrail is also included on the platform.
- Both the operating panel and call stations come standard with keyed access for security purposes.
- The Lux V-1504 uses continuous pressure operation and features a 36” by 54” platform.
Safety features
Standard safety features of the Lux lift include emergency stop button on car, non-skid platform, manual lowering device, keyed car buttons and keyed call stations, safety brake and electric door locks.
Commercial package
Including alarm, keyless operation, keyless hall call (subject to type of application), power gate and door operators, outdoor package including Savaria WR-500 weather-resistant locks, acrylic dome top, folding seat, 60 mm buttons, ADA hands-free phone.

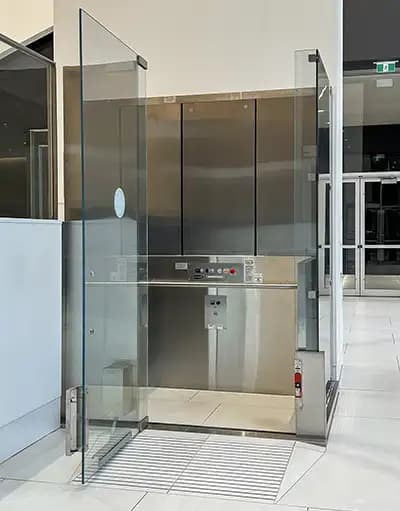

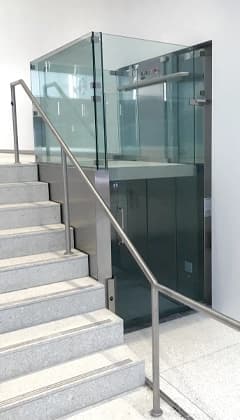

For indoor use, and shorter travel, see the Prestige
The Savaria Prestige vertical platform lift features ½” structural glass, suitable for two-stop indoor applications>
Learn more
See our ultimate guide to learn more about the best options for your commercial accessibility needs. Find out what is involved in the installation and site preparation, and other options for commercial applications.
V-1504 Lux Specifications
Applications
Residential, commercial, indoors, outdoors
Drive/motor
2:1 chain hydraulic, 3 hp (2.2 kW), gear-type motor
Capacity
750 lb (340 kg)
Maximum travel distance
10′ (1.8 m), 12’ in some jurisdictions
Nominal speed
20 ft/min (0.1 m/s)
Minimum pit
3″ (76.2 mm)
Power supply
120 VAC, 20 amp, single phase, 60 Hz
Platform sizes
W36″ x L54″ (914 mm x 1371 mm) Standard
W36″ x L60″ (914 mm x 1524 mm)
Custom sizes up to 42″ x 60″ (1067 mm x 1524 mm)
One touch Alert
Optional. Learn more.
Savaria Link
Optional. Learn more.
Warranty
A 36-month warranty against defective parts is included through your local dealer.*
Entry/exit configurations available
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

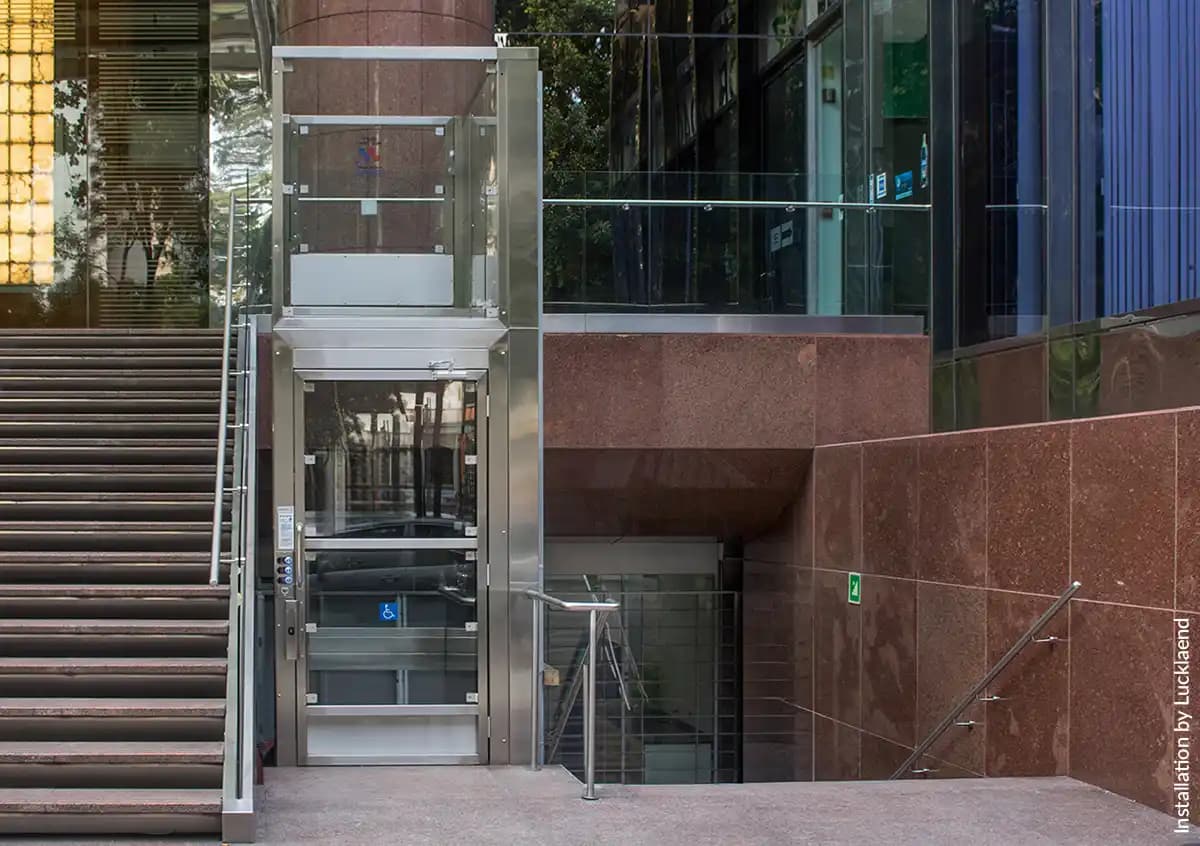

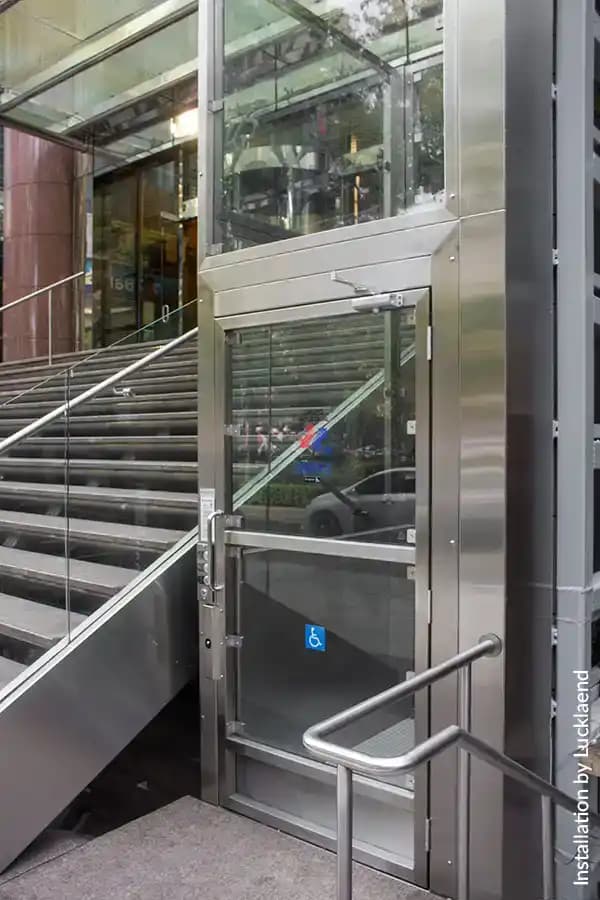

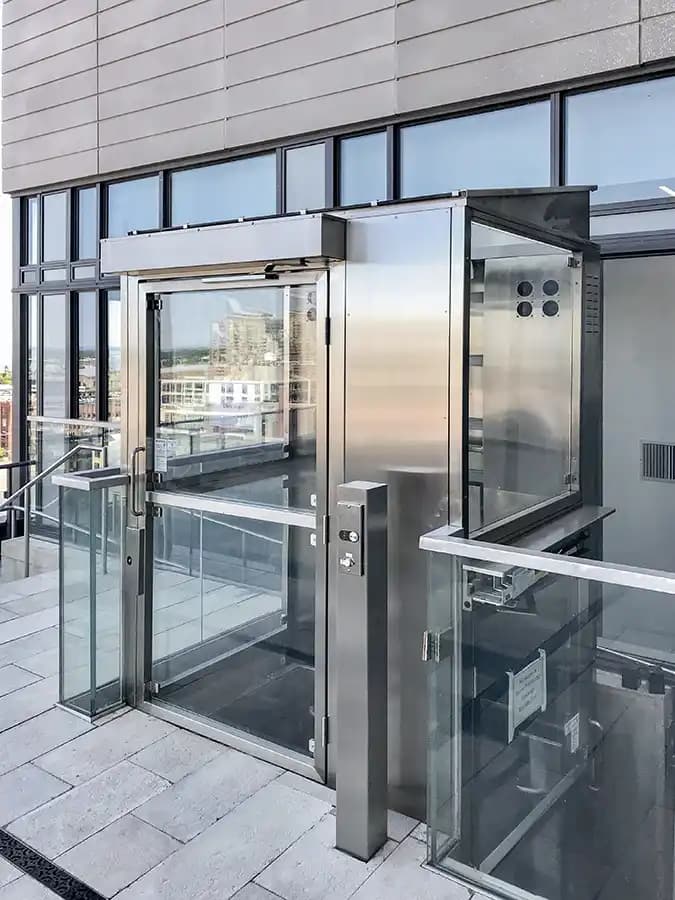

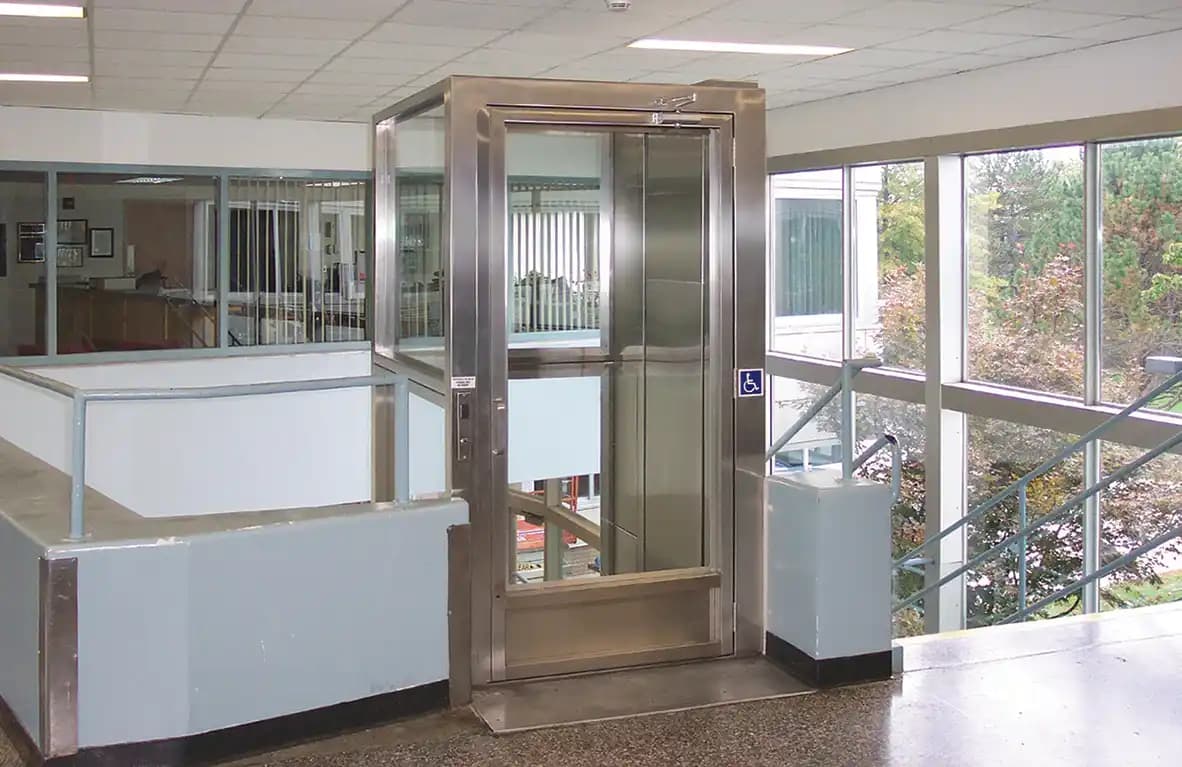

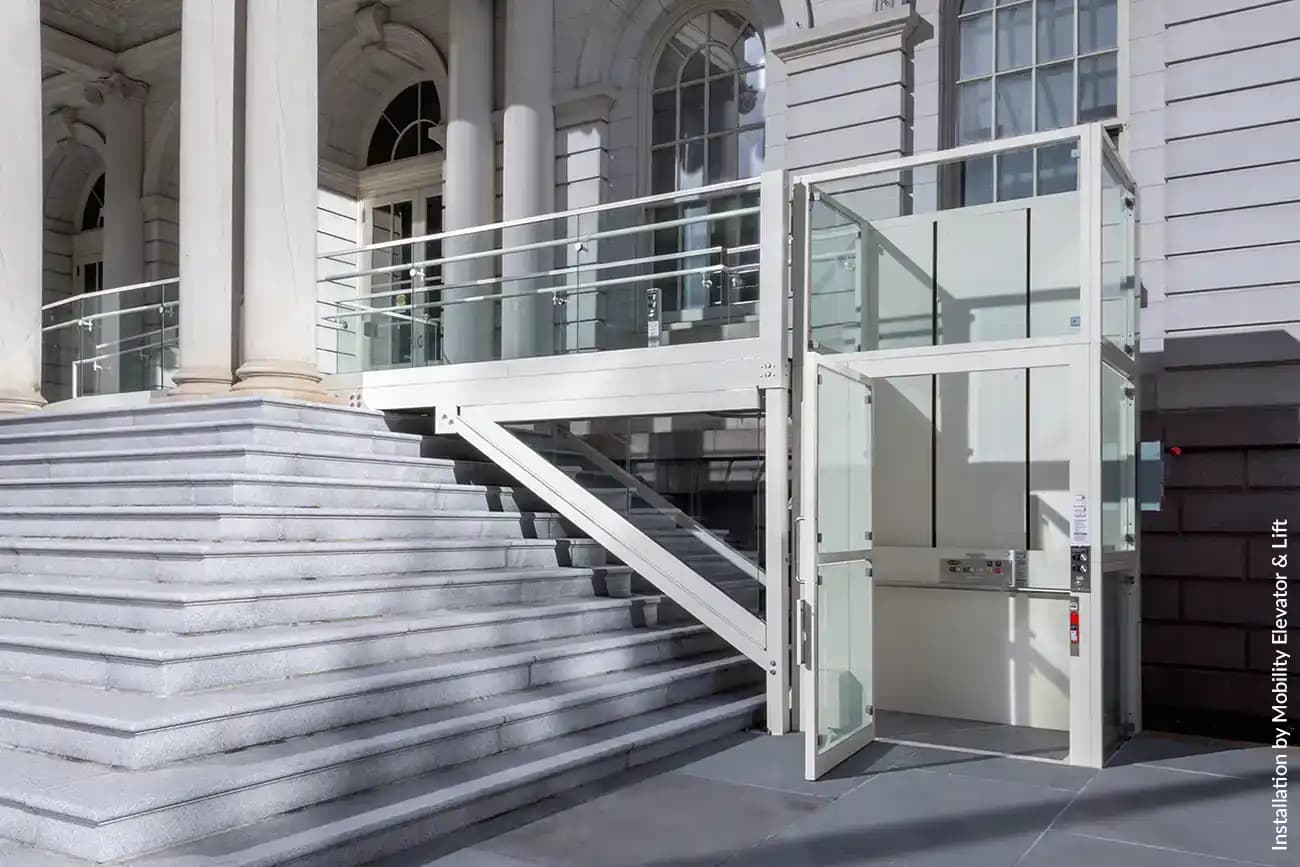

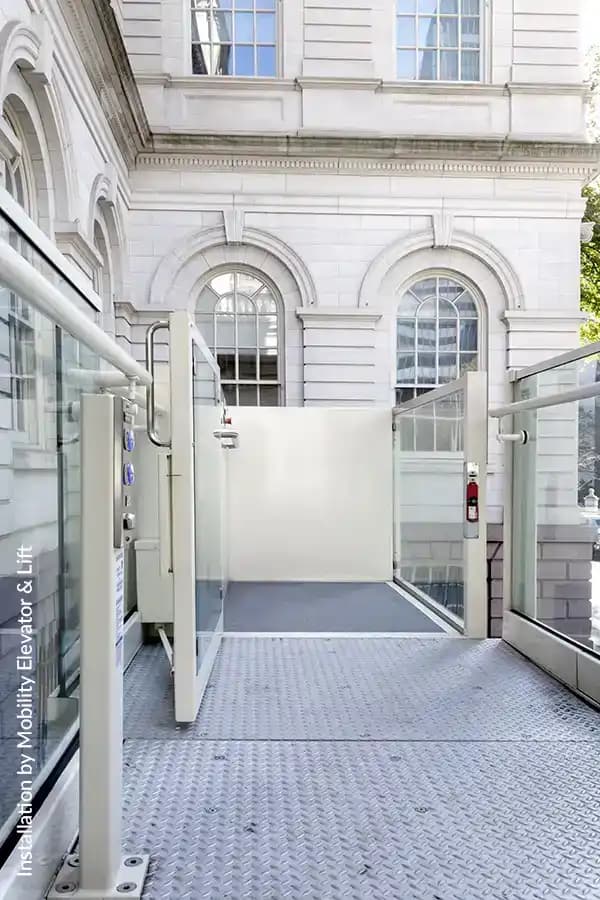

Lux Gallery
See the Lux in a variety of settings
Commercial Accessibility Options
Learn how Savaria lifts and elevators can make your commercial space more accessible. From theaters to arenas, from restaurants to churches, from schools to banks, we’ve made hundreds of buildings barrier-free.
