Telecab 17 Through Floor Lift
A High Capacity Through-Floor Lift
The Savaria Telecab 17 through-the-floor provides service to two levels in your home. It features an 845lb capacity, making it well- suited to use with heavier mobility equipment such as power wheelchairs or scooters. Using the same drive system as the robust Savaria V1504 wheelchair lift, the Telecab 17 delivers reliable performance, without the need for a hoistway. The lift features a fully enclosed acrylic cab.
Why Choose a Savaria Telecab 17 Lift
High Capacity Indoor Wheelchair LiftThe Savaria Telecab 17 accommodates heavy devices such power chairs and mobility scooters. Choose from two cab sizes with up to a 36″ by 54″ interior cab size with 80″ height for a spacious interior.
The Telecab installs onto a support wall and travels through a floor cut-out on the second level that is capped shut when the lift descends. The lift features constant pressure operation also known as “push-to-run” buttons to service two levels in your home, thanks to its hydraulic drive tower.

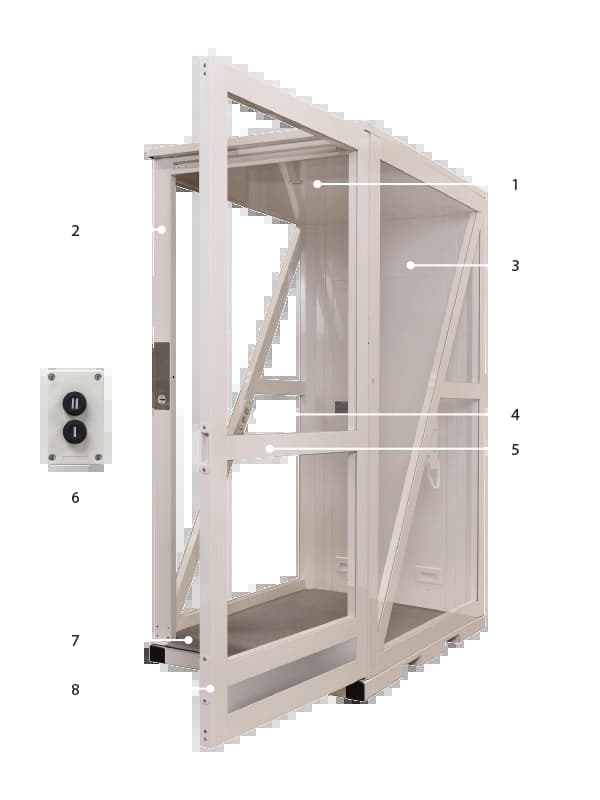

Telecab 17 Through Floor Lift
Standard finish
Automatic ceiling lighting with two recessed LED fixtures
- White powder-coated aluminum finish.
- Features a modern cab style including full-height acrylic panels on three sides and a single access door.

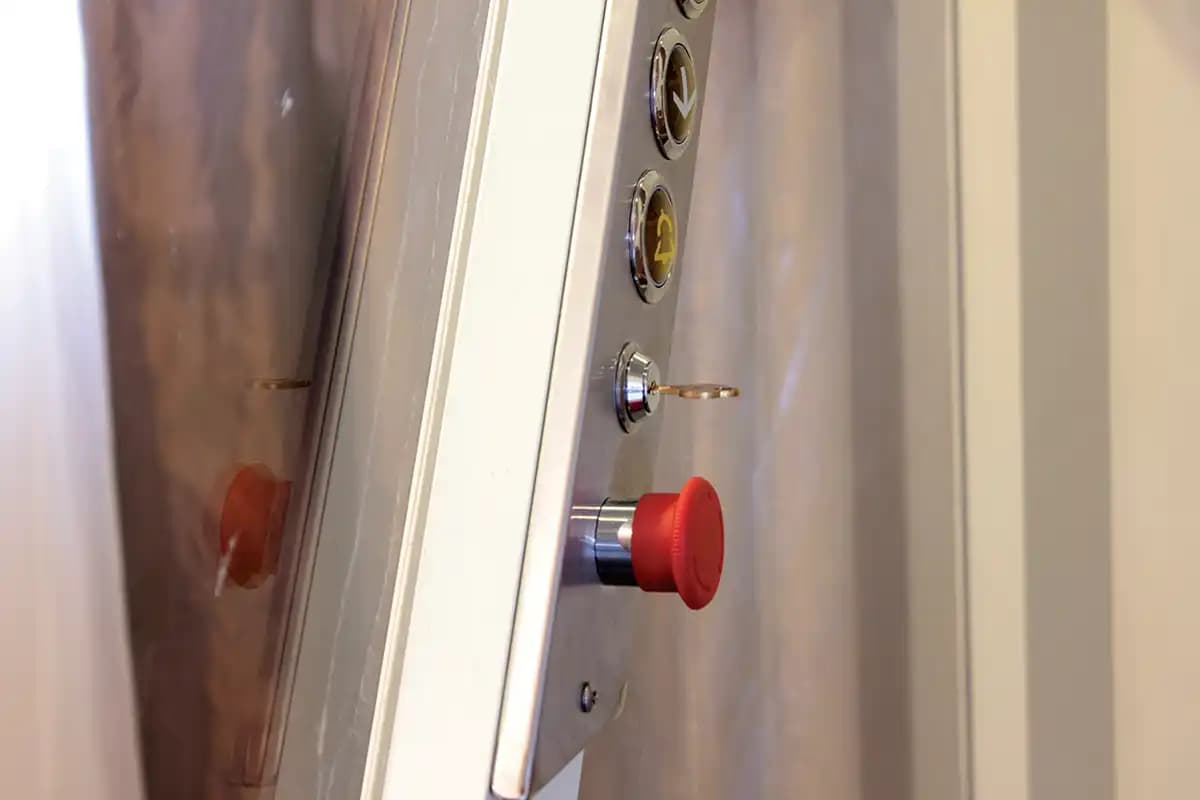

- Interior control panel located for easy reach if seated in a mobility device.
- Full-depth sturdy handrail.
- Wall-mounted call button.
- Sloped threshold ramp along with non-skid flooring provide easier and secure access to the lift for mobility device users or those with diminished stability.
- Door with a hydraulic closer.
Telecab 17 Specifications
Applications
Residential, indoor
Motor/pump
2:1 roller chain hydraulic
Standard Capacity
845 lb (384 kg)
Maximum travel distance
23′ (7 m) with 2 stops
Nominal speed
20 ft/min (0.1 m/s)
Floor cutout
60 ½" × 35 ¼" (1537 mm × 895 mm) for 30" × 46" cab
68 ½" × 41 ¼" (1740 mm × 1048 mm) for 36" × 54" cab
Minimum overhead required: 96" (2438 mm) to have 6" minimum clearance by code
92" (2337 mm) requires variance
Drive
2:1 roller chain hydraulic
Power supply required
110 VAC, 20 A, 60 Hz, single phase
One touch Alert
Optional. Learn more.
Savaria Link
Optional. Learn more.
Warranty
A 36-month warranty against defective parts is included through your local dealer.*
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

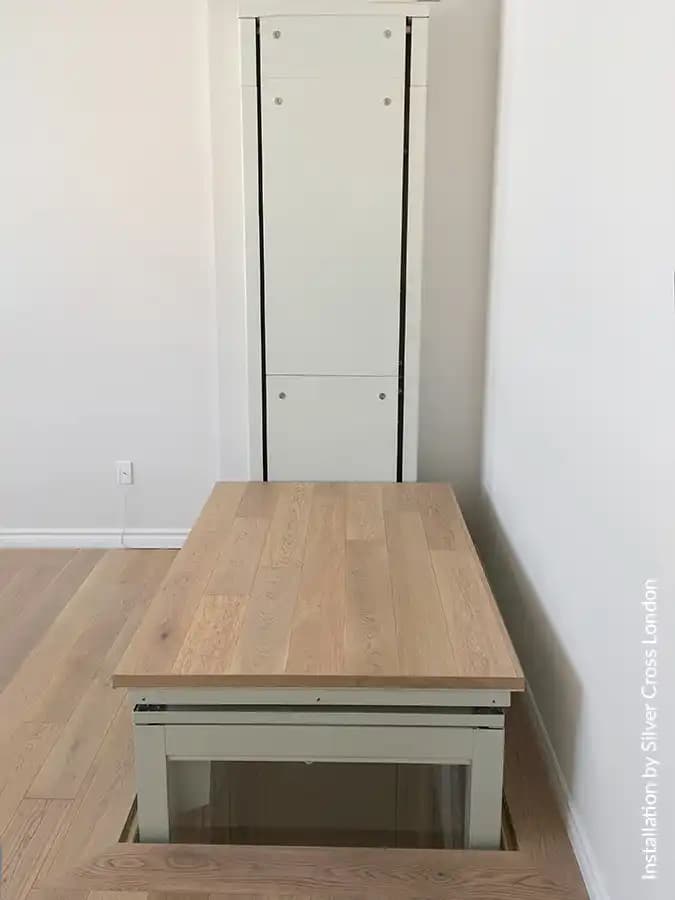

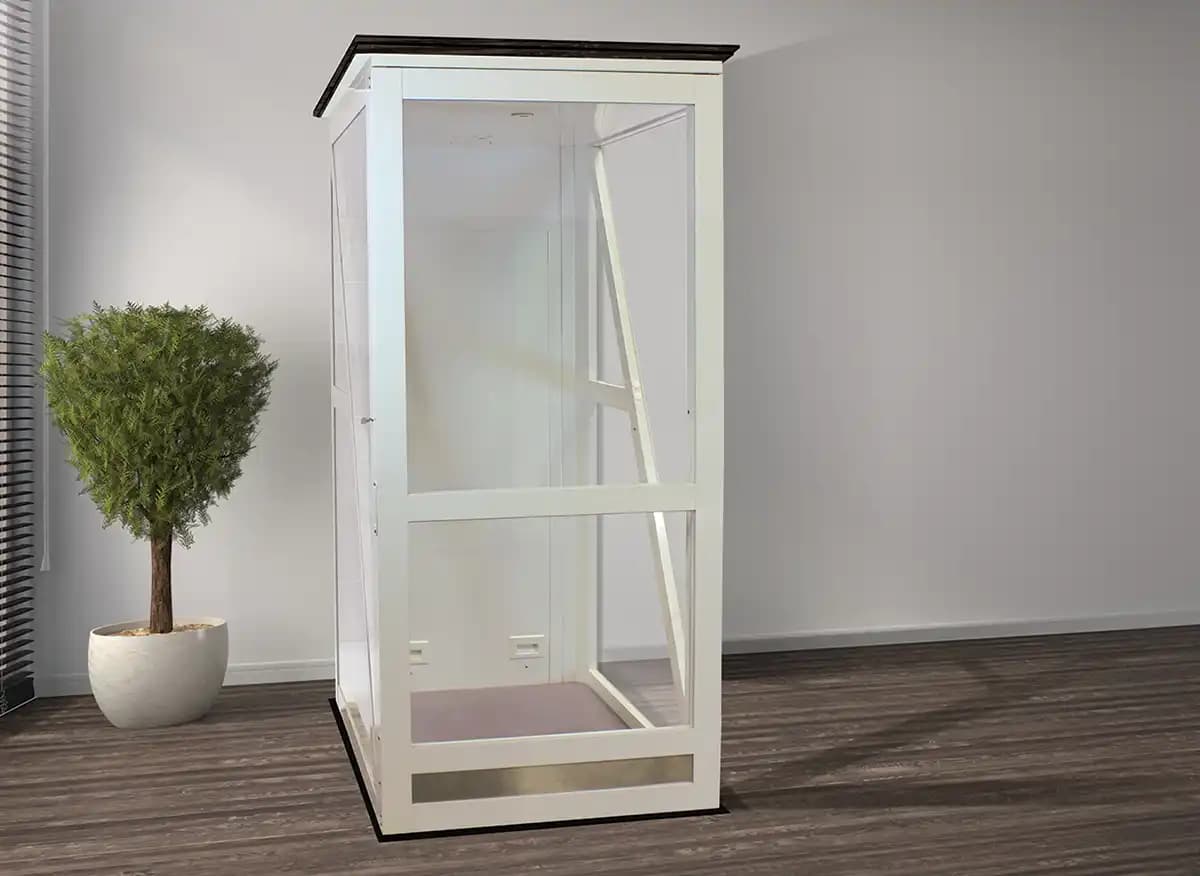

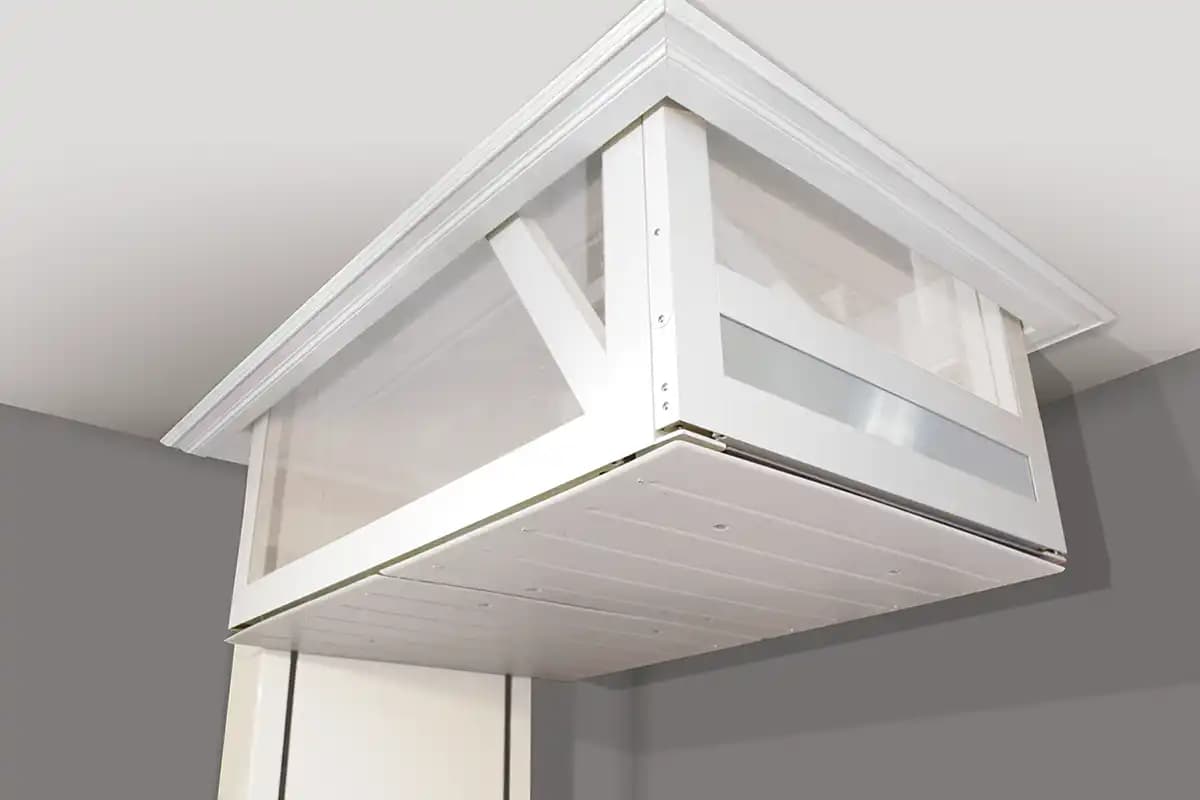

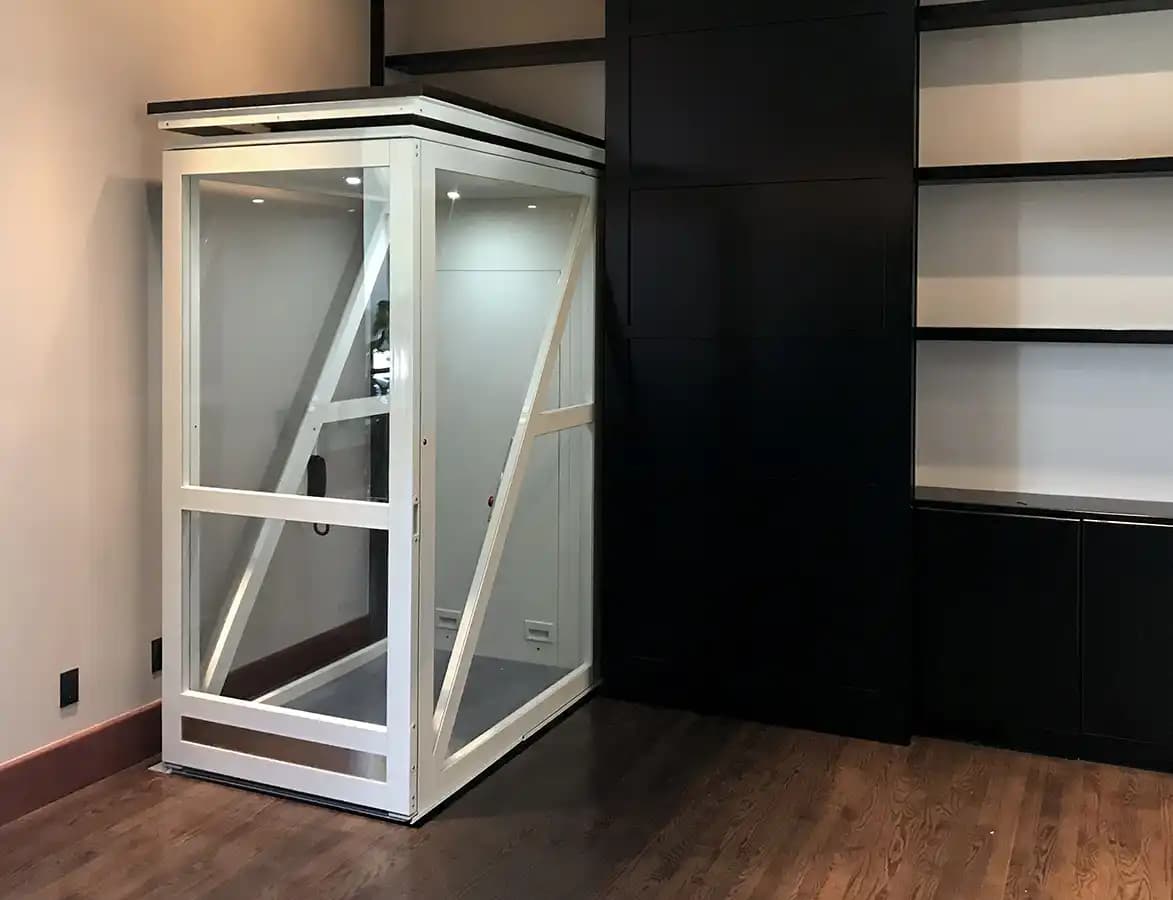

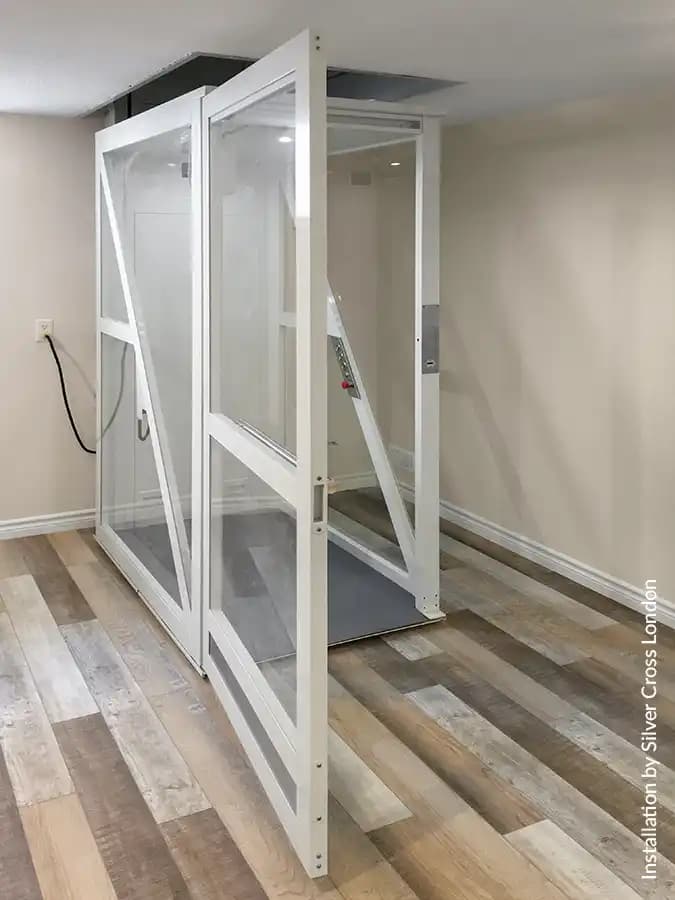

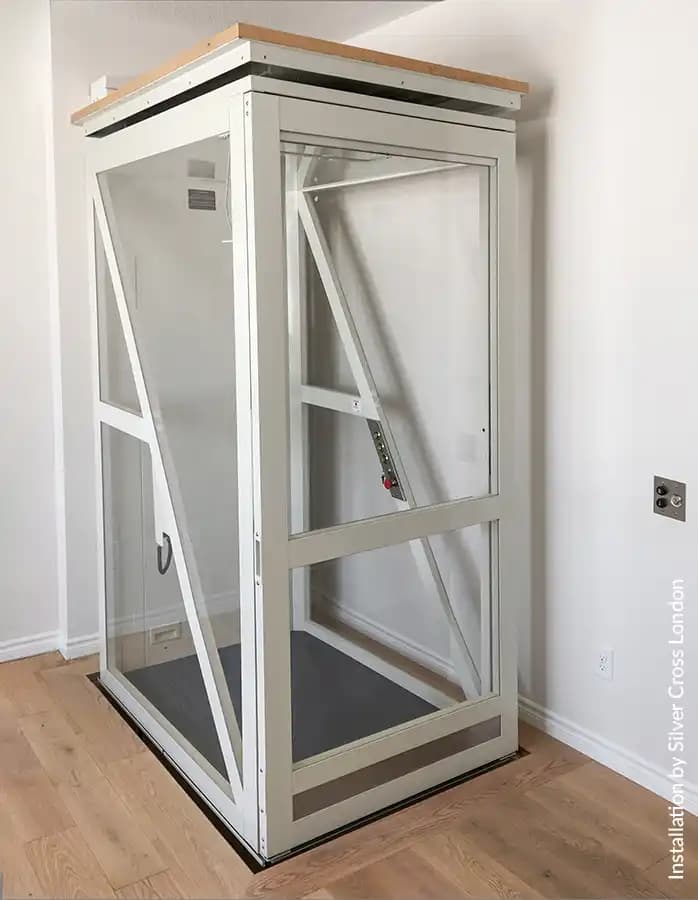

Telecab 17 Gallery
See more photos of Telecab 17
Explore Other Savaria Through-Floor Lift Models
Savaria offers three models of through-the-floor lifts for home use. If you need two-door access, see the Telecab. If you don’t need to accommodate a wheelchair, see the Luma lift.
