Delta Inclined Platform Lift
Wheelchair lift installs over straight staircases
The Delta inclined platform lift is suitable for home or commercial use, and provides wheelchair access over a single flight of straight stairs. The platform carries a wheelchair user, or optionally a seated passenger, with an access ramp and safety arms that raise and lower. The platform travels on two guide rails. When not in the use, the platform folds up to allow clearance on the stairs.
Why Choose the Delta Wheelchair Lift
Accessibility with little construction neededWe leveraged the brightest minds in our global R&D team to engineer the Freecurve, and we manufacture it to meet international standards for safety and reliability. Installation of the custom rails by your local Savaria expert is typically straightforward and can be completed without additional modifications to your home.
The Delta wheelchair lift does not require a machine room. The motor and drive system are located on the carriage saving space and adding to simplicity, with no major construction needed. The travel rails are installed onto the stairs with support posts, or onto the adjacent wall, depending on size of platform, angle of the stairs and site conditions. The planning guide outlines the general preparation that is needed.

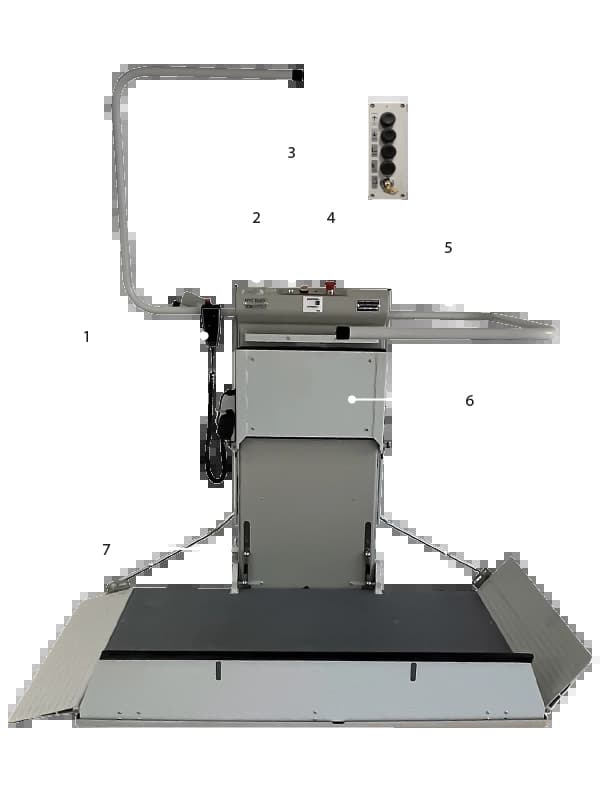

Delta Inclined Platform Lift
Standard features and finish
- Control panel on the lift and pendant controller with simple-to-use constant pressure buttons for up and down movement.
- Light-up diagnostic display on the lift that alerts of possible issues such as an obstruction
- Keyed call stations and operating panel
- Emergency stop button on the lift and the pendant
- Handrail on the platform
- Light gray (RAL 7035) as standard color
- Battery powered with built-in charging at the top and bottom landings. The lift provides several trips during a power failure
Delta Options
Commercial package
For public buildings, the commercial package includes motorized folding arms and platform, additional battery pack, audio visual alert, folding seat and ADA-compliant platform size.
Finish
The platform, carriage and rails can be ordered with stainless steel finish/cladding.
Folding platform
For home use, the standard unit features a manual folding platform. You can add a motorized folding platform for ease of use, as well as a folding seat.

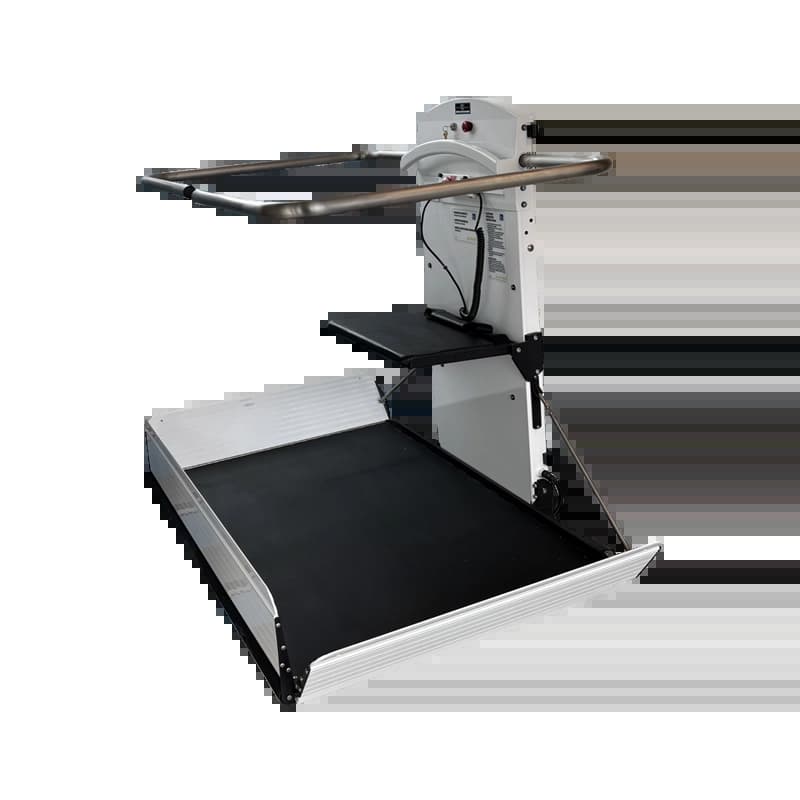

Have a curved or turning staircase?

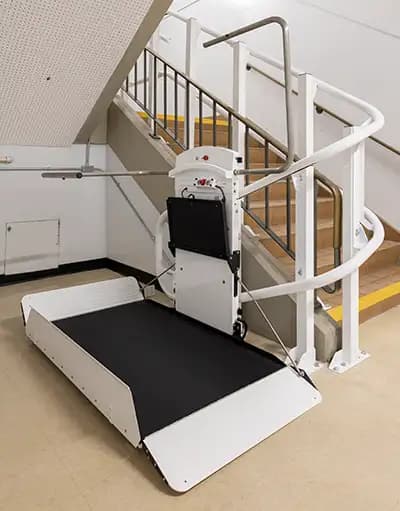

If your stairs are curved, have a change of direction or intermediate landing, consider the Pegasus curved inclined lift
Delta Specifications
Applications
Residential, commercial, indoor, outdoor (in moderate climates)
Motor
0.66 hp (0.5 kW), 24 VDC charges on 120v AC
Standard Capacity
550 lb (250 kg), optionally 660 lb* (300 kg)
Capacity of optional folding seat: 330lb (150 kg)
Range of incline
20˚ to 40˚
Maximum Travel
80 ft (24 m)
Travel speed
5 ft-20 ft/min (0.075 -1 m/s), varies with the stair angle
Minimum travel
8″ (20 cm)
Access
Straight through, or 90-degree access
Travel speed
5 ft-20 ft/min (0.075 -1 m/s), varies with the stair angle
Platform sizes
W261/2″ x L36″ (673 mm x 914 mm)
W30 1/2″ x L49 1/4″ (775 mm x 1250 mm)
W28 3/8″ x L35 1/2″ (720 mm x 900 mm)
W28 1/2″ x L44″ (724 mm x 1118 mm)
Warranty
A 36-month warranty against defective parts is included through your local dealer.**
Be sure to read about the space needed for the lift here.
*USA only
**Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

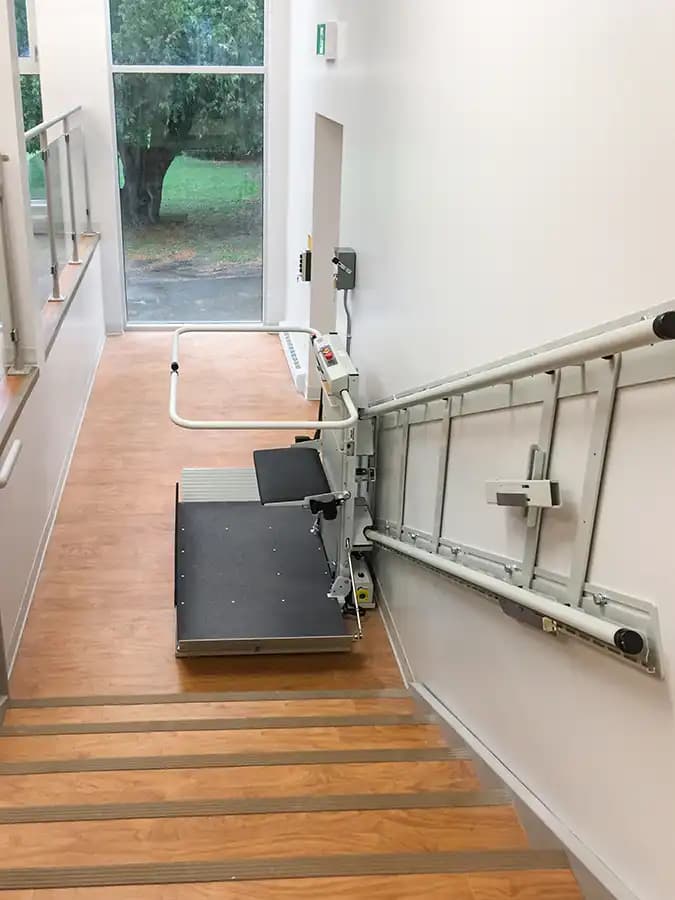

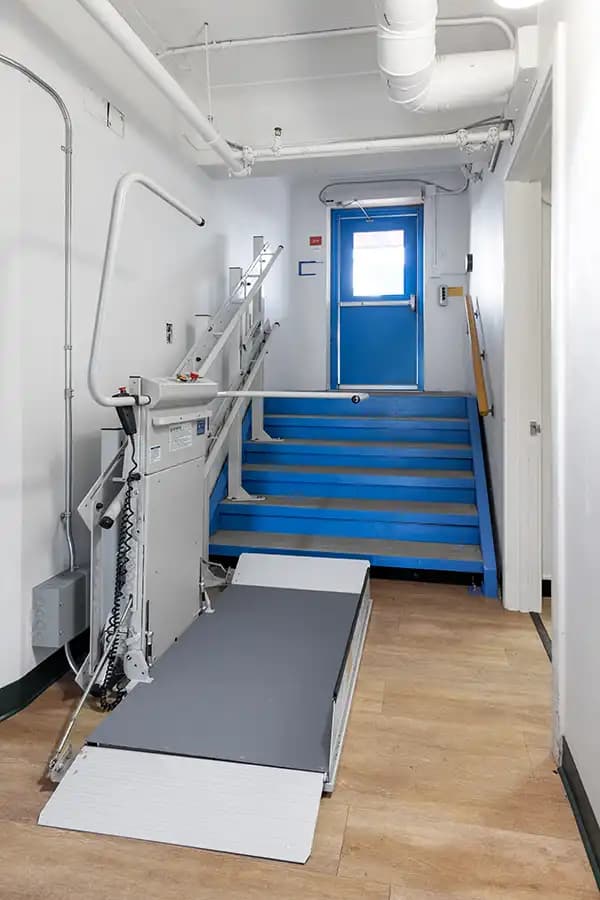

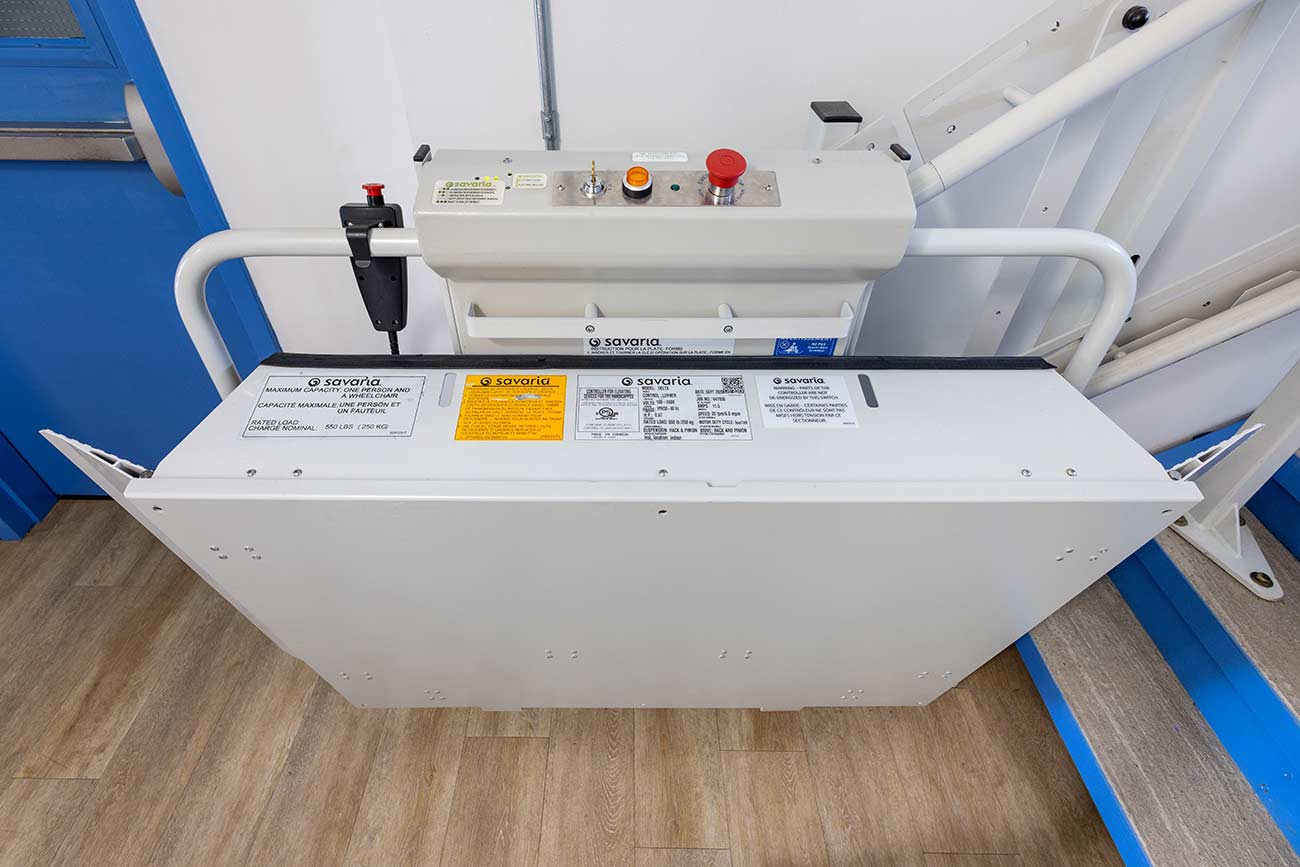

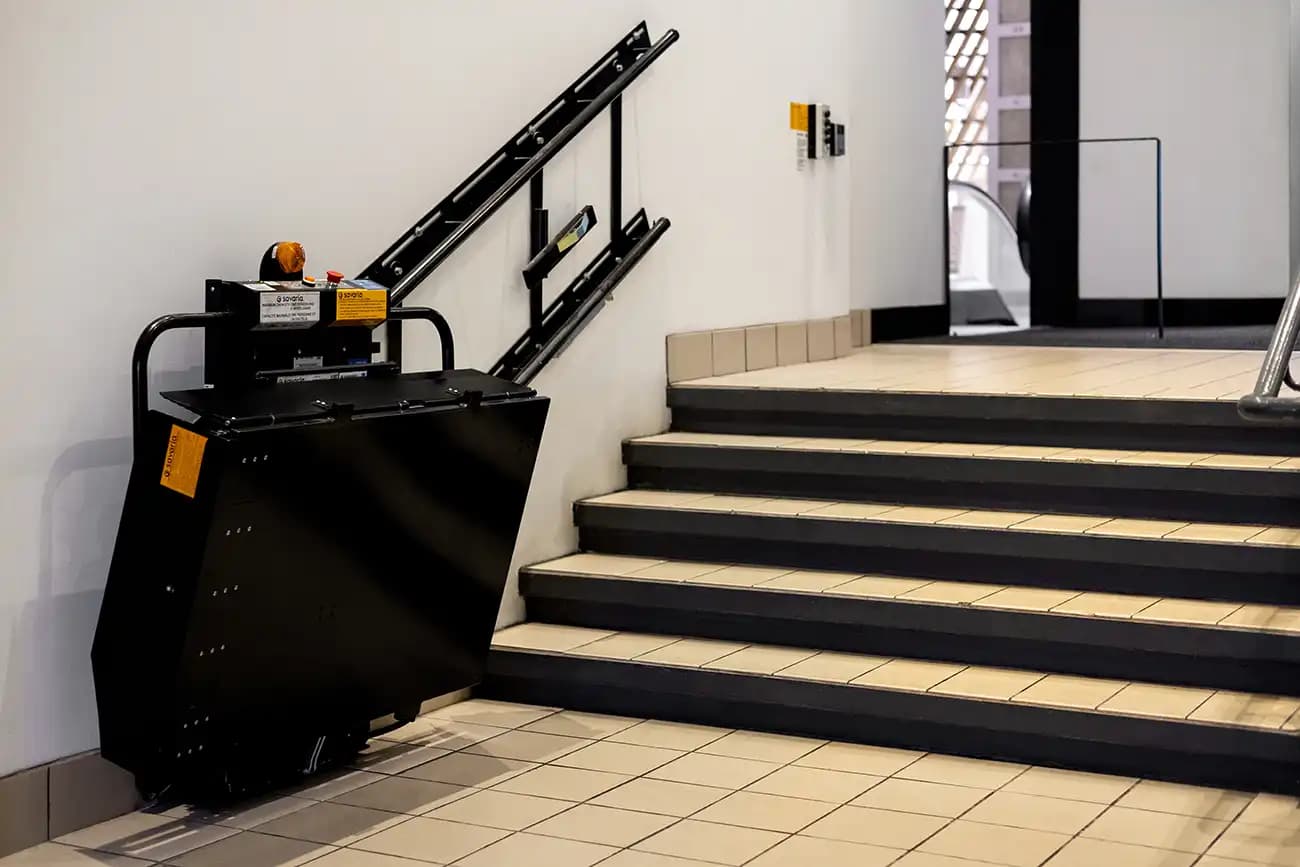

Delta Gallery

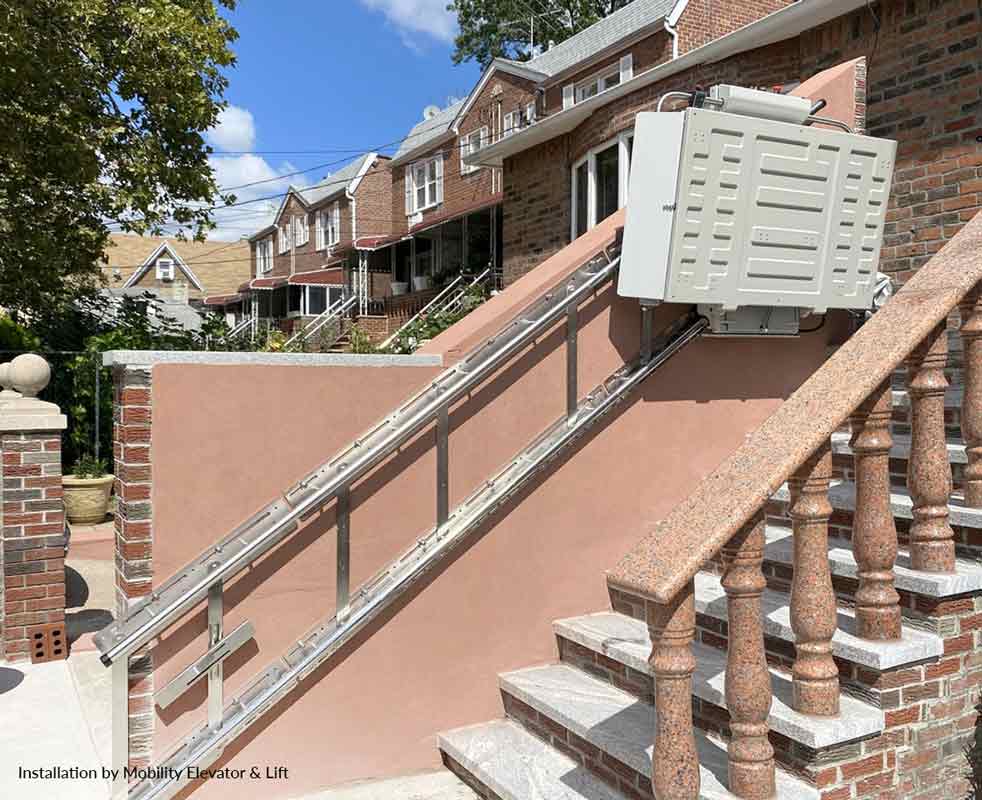

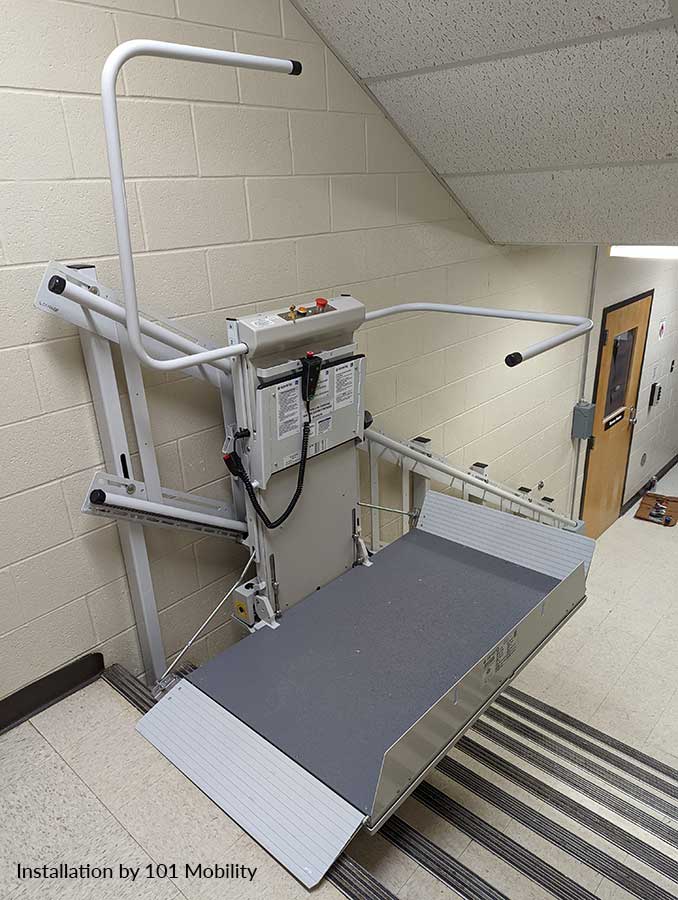

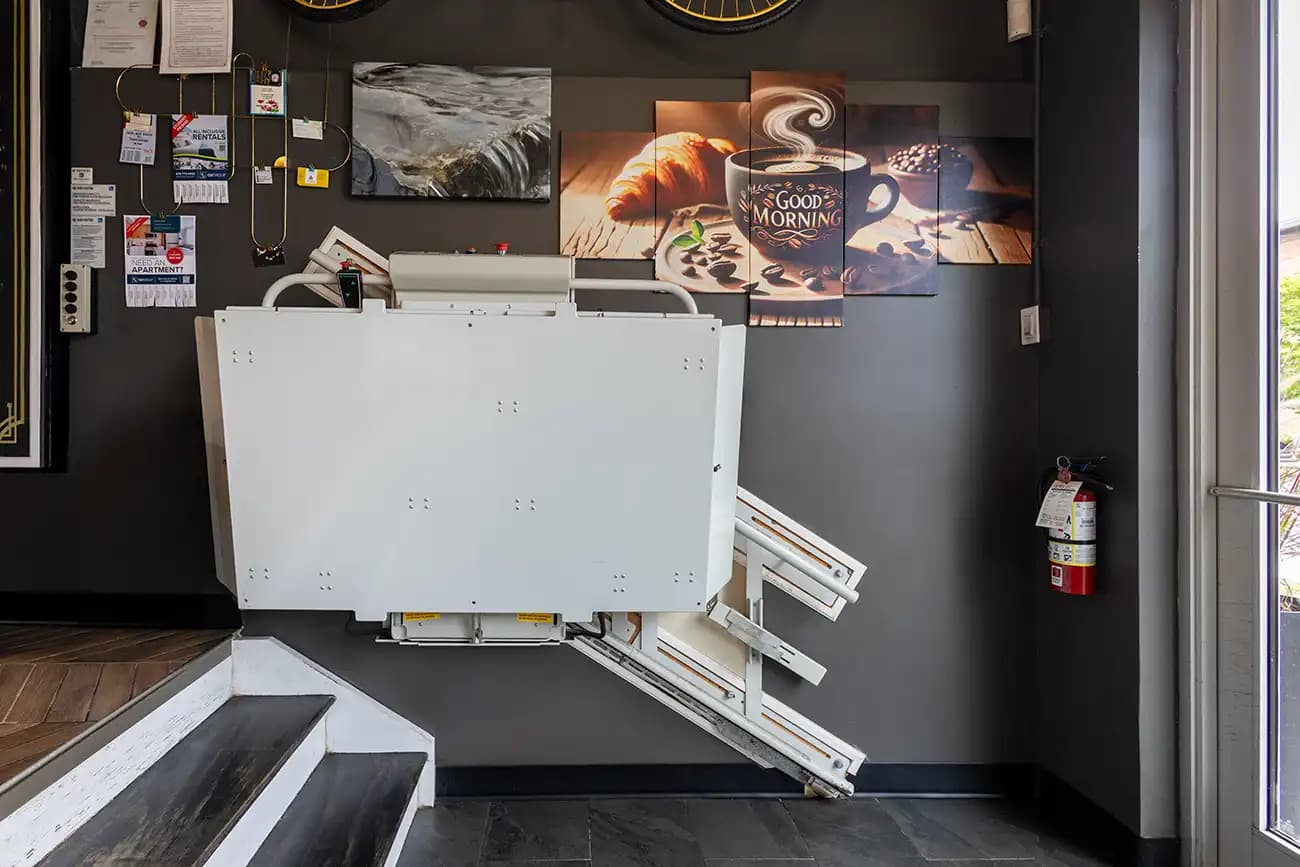

See Delta inclined platform lift installations

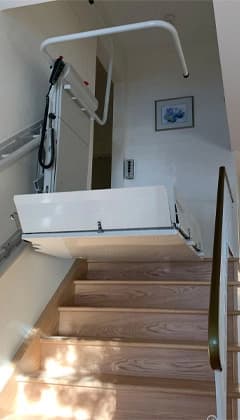

Looking at inclined platform lifts for your home?
Find out more about the cost of an inclined lift for home use, what’s involved for installation and other accessibility products in our ultimate guide for home accessibility.

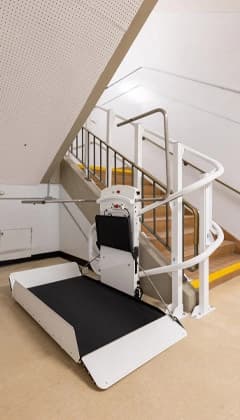

Looking at inclined platform lifts for your business?
