V-1504 Prestige Vertical Platform Lift

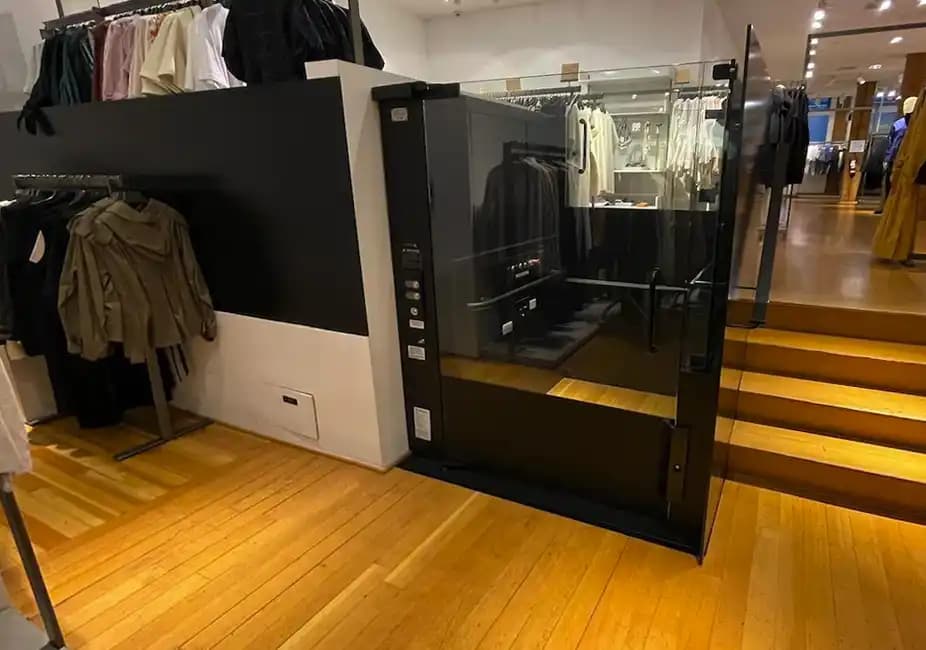

The ultimate glass wheelchair lift

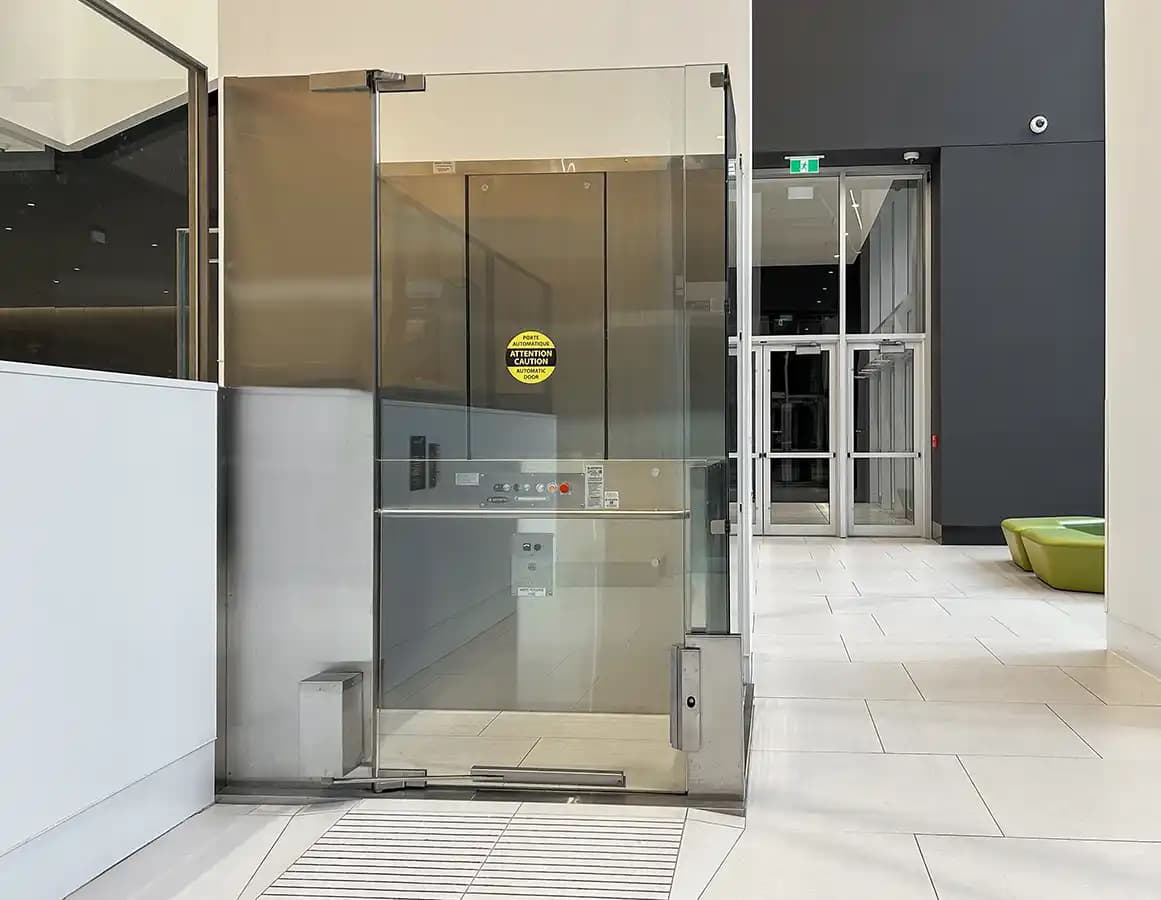

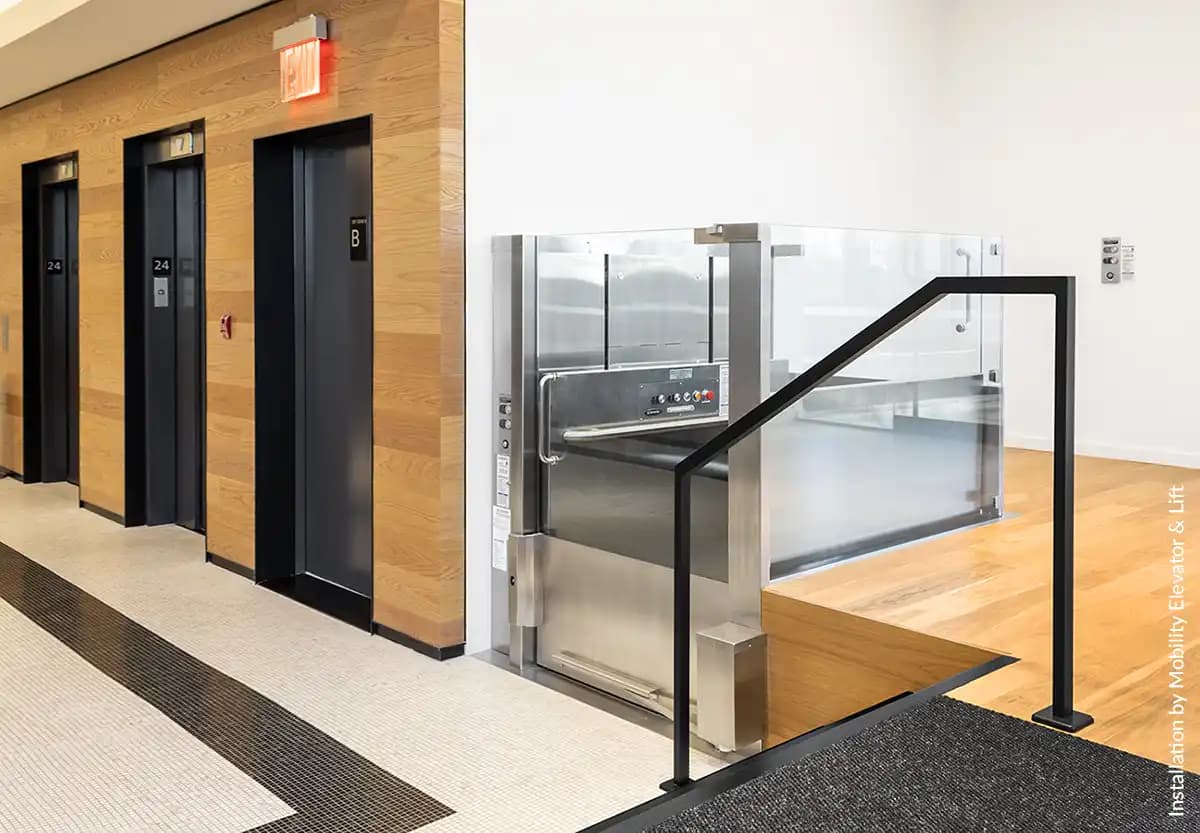

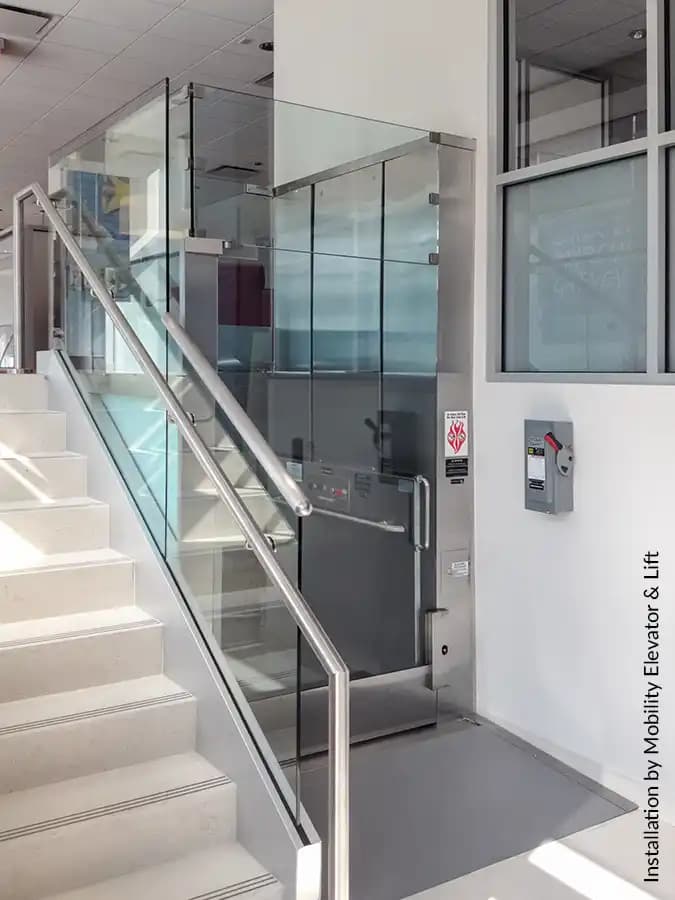

If you thought accessibility cannot look good, the Savaria Prestige is here to change that. Half-inch structural tempered glass with no visible frame makes this lift the ultimate statement in barrier-free access in commercial settings. The Prestige can be configured for up to 6 feet of travel with 2 stops for indoor applications. A full-sized glass door is included for the lower landing with a half-sized glass gate at the top. Customize the Prestige further with other options and paint colors for the travel tower.

Reliable hydraulic drive dressed with luxury glass

The Savaria Prestige is a variant of the popular V-1504 vertical platform lift and features the same hydraulic drive tower with no machine room required. It’s well suited to prestigious spaces such as office building lobbies, financial institutions, universities, entertainment venues, retail, and hospitality settings. The Prestige is deserving of front-building status, making it easier for those needing it, while adding to the aesthetic of the surroundings.

SEE MORE

Customize to suit

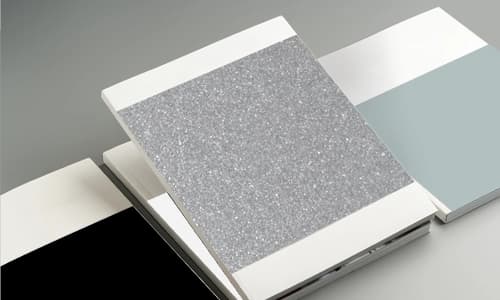

The Prestige tower comes standard in grey primer, ready for your choice of stainless steel cladding, or custom paint color. The standard platform size is 36” by 54” (ADA-compliant), with custom sizing up to 42” by 60”. The lift can be configured for one or two entrances. You can also request laminated tempered glass and paint choices include gloss, semi-gloss, or textured finish for the tower. See color options here.

SEE MORE
Background

V1504-Prestige

Standard features and finishes

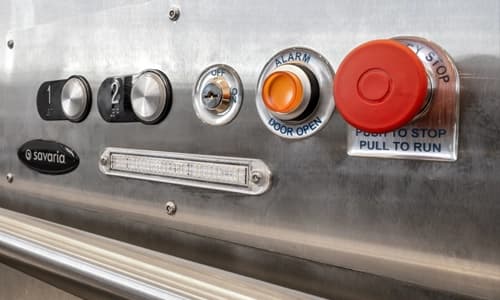

  1. The operating panel on-board the lift includes an emergency stop/alarm button.

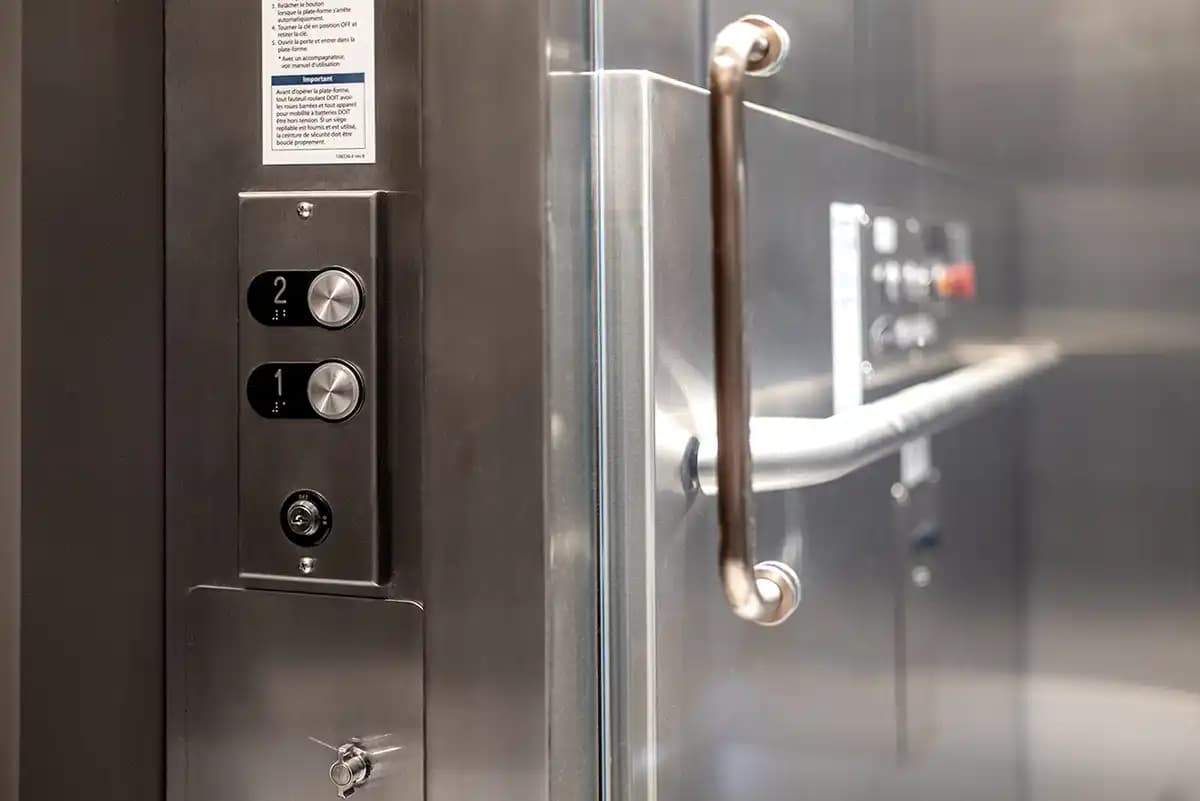

  2. Call stations are included for each landing to summon the lift.
  3. Both the operating panel and call stations come standard with keyed access for security purposes.
  4. A full-depth handrail is also included on the platform.
  5. The standard finish is grey primer for the tower.
  6. Comes with ½” structural glass for the side panels, top landing gate, and full-sized lower landing door.
  7. The Prestige V-1504 uses continuous pressure operation and features a 36” by 54” platform.
V1504-Prestige

Safety features

Standard safety features of the Prestige lift include emergency stop button on car, non-skid platform, manual lowering device, 42 1/8″ (1070 mm) side panels, keyed car buttons and keyed call stations, safety brake and electric door locks.

SEE MORE
Other options

Commercial package

Includes alarm, keyless operation, keyless hall call (subject to type of application), steel ULC fire-rated ProDoors, power gate and door operators, acrylic inserts for gate, Savaria WR-500 weather-resistant lock, folding seat, 60 mm buttons, ADA hands-free phone.

Travel up to 12' with the Framed Prestige

Our framed version features 3 inch structural tubing on the corners of the doors for higher travel of up to 12 feet with 3 stops.

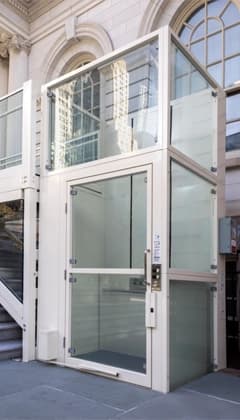

Need more travel or outdoor use?

Need more travel or outdoor use?

The Savaria Lux vertical platform lift features higher travel and can be installed outdoors.

Learn more

Learn more

See our ultimate guide to learn more about the best options for your commercial accessibility needs. Find out what is involved in the installation and site preparation, and other options for commercial applications.


V-1504 Standard Specifications

Applications

Residential, commercial, indoors

Drive/motor

2:1 chain hydraulic, 3 hp (2.2 kW), gear-type motor

Capacity

750 lb (340 kg)

Maximum travel distance

6′ (1.8 m)

Nominal speed

20 ft/min (0.1 m/s)

Minimum pit

3″ (76.2 mm)

Power supply

120 VAC, 20 amp, single phase, 60 Hz

Platform sizes

W36″ x L54″ (914 mm x 1371 mm) Standard
W36″ x L60″ (914 mm x 1524 mm)

Custom sizes up to 42″ x 60″ (1067 mm x 1524 mm)

One touch Alert

Optional. Learn more.

Savaria Link

Optional. Learn more.

Warranty

A 36-month warranty against defective parts is included through your local dealer.*

Entry/exit configurations available

Cab 1
Cab 2
Cab 3
Cab 4

*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.


Commercial Accessibility Options

Learn how Savaria lifts and elevators can make your commercial space more accessible. From theaters to arenas, from restaurants to churches, from schools to banks, we’ve made hundreds of buildings barrier-free.

Commercial Accessibility Options

V-1504 Documents

Read more in the brochure, or planning guide

Learn More

Related Products

See similar products

V-1504 Standard VPL

V-1504 Standard VPL

Your local Savaria dealer can assist you to meet local code requirements for your wheelchair lift
